LM 30 UU OP RICH 30x45x64 LM30UUOP RICH
zoom_out_map
LM 30 UU OP RICH 30x45x64 LM30UUOP RICH

LM 30 UU OP RICH 30x45x64

Type: Linear Ball Bearing
Model: LM 30 UU OP RICH
Bore: 30 mm (Open)
Cage: Polyamide
Brand: RICH
Origin: China
RICH
LM30UUOP
€5.72
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

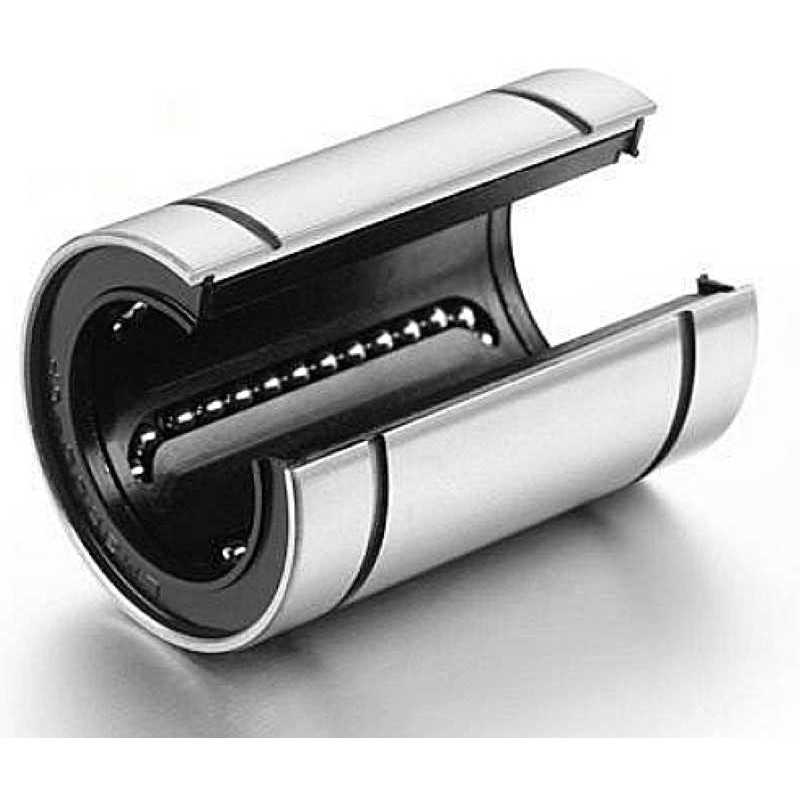

LM 30 UU OP RICH Open Type Linear Ball Bearing - 30 x 45 x 64 mm

Technical Specifications:

  • Catalog Code: LM 30 UU OP RICH
  • Brand: RICH
  • Type: Linear ball bearing - Open Type
  • Shaft Diameter (d): 30 mm
  • Outer Diameter (D): 45 mm
  • Length (L): 64 mm
  • Standard: JIS
  • Cage Material: Polyamide
  • Sealing: UU (Double-sided single-lip seals)
  • Weight: 0.202 kg
  • Country of Origin: China

Key Performance Advantages:

  • Open Type (OP) Architecture: Designed with a precision opening to facilitate travel over supported rails, eliminating the risk of shaft deflection in long-stroke applications.
  • Robust 30 mm Bore: Engineered for heavy-duty industrial machinery, providing high radial load capacity and rigid linear guidance.
  • Low Friction Polyamide Cage: Features a high-performance resin cage that ensures quiet operation and smooth recirculation of the bearing balls.
  • Double UU Sealing: Equipped with protective seals on both ends (notched to match the open profile) to prevent contamination and maximize service life.

Transparency Note: This product is manufactured under the RICH brand. The code LM 30 UU OP is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
30
Outer Diameter
45
Width
64
Cage
Polyamide Cage
