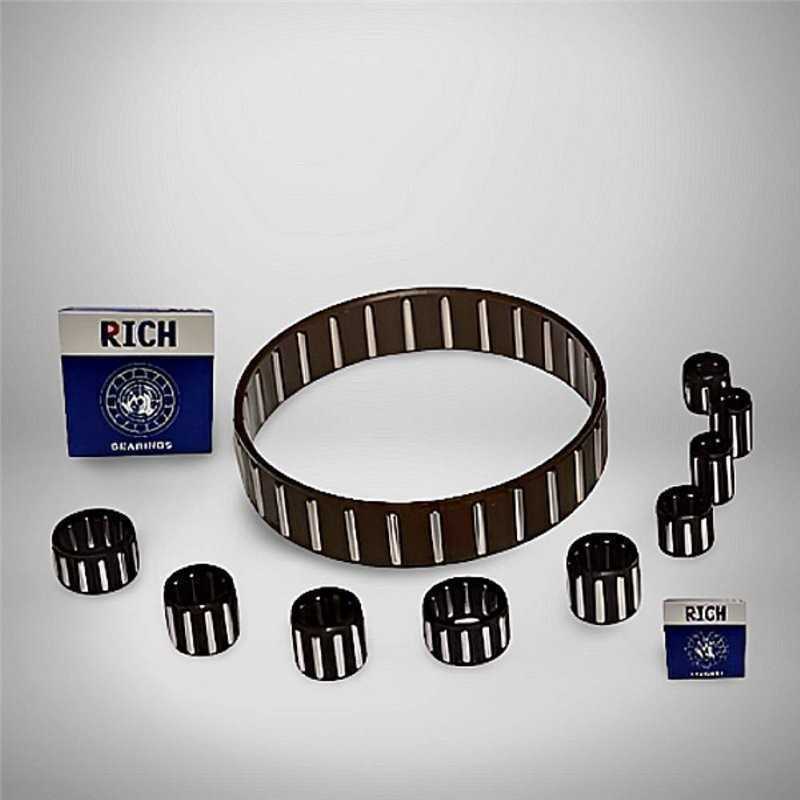

K 22x32x30 RICH Needle Roller and Cage Assembly - 22 x 32 x 30 mm

Technical Specifications:

  • Brand: RICH
  • Type: Needle Roller and Cage Assembly
  • Dimensions: 22 x 32 x 30 mm
  • Weight: 0.058 kg
  • Cage: Steel
  • Country of Origin: China

The K 22x32x30 RICH is a single row needle roller and cage assembly, providing a high radial load capacity within a very small cross-section. This space-saving design is ideal for applications where compact mounting arrangements are critical. The assembly consists of a single row of needle rollers held in place by a steel cage, allowing it to be used without a dedicated inner ring when the shaft is appropriately hardened and ground. This configuration maximizes effective bearing diameter and provides a simple yet robust solution for transmitting high radial loads with precision and minimal friction.

Key Performance Advantages:

  • High Radial Load Capacity: Exceptional load-bearing capability in a compact design.
  • Space-Saving: Minimal cross-section allows for smaller, more efficient machine designs.
  • Separable Components: Easy to handle and install, simplifying assembly.
  • Durable Construction: The steel cage provides robustness and reliable performance.

Data sheet

Inner Diameter
22
Outer Diameter
32
Width
30
Weight
0,058
Cage
Steel
Category
Needle Roller And Cage Assembly
