K35x40x20 RICH K35X40X20 RICH
zoom_out_map
K35x40x20 RICH K35X40X20 RICH

K35x40x20 RICH

RICH
K35X40X20
€2.23
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

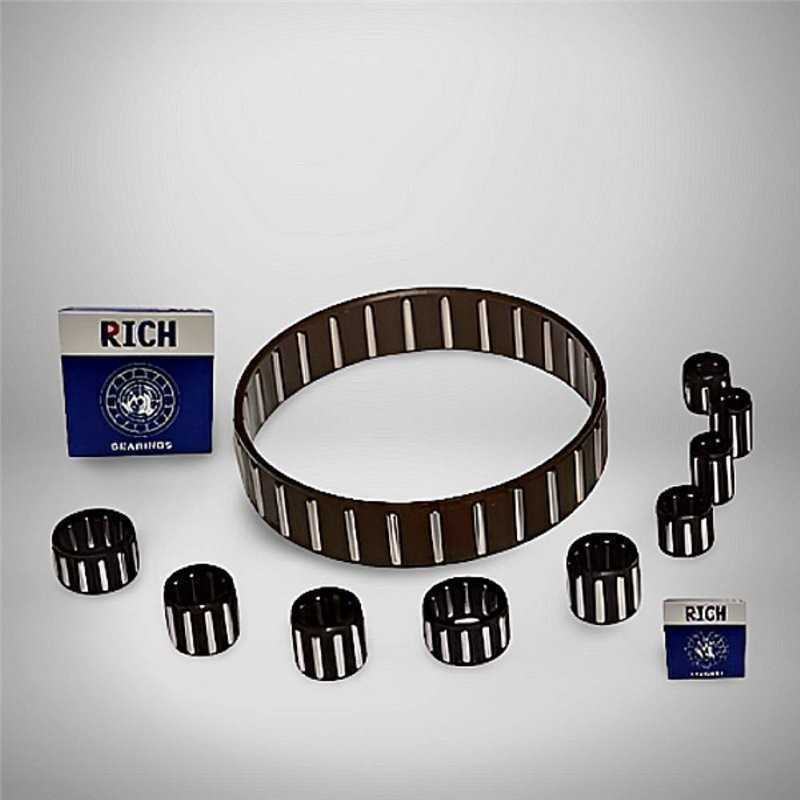

K 35x40x20 RICH Needle Roller and Cage Assembly - 35 x 40 x 20 mm

Technical Specifications:

  • Brand: RICH
  • Type: Needle Roller and Cage Assembly
  • Dimensions: 35 x 40 x 20 mm
  • Weight: 0.03 kg
  • Cage: Steel
  • Country of Origin: China

The K 35x40x20 RICH is a single row needle roller and cage assembly, providing a high radial load capacity within a very small cross-section. This space-saving design is ideal for applications where compact mounting arrangements are critical. The assembly consists of a single row of needle rollers held in place by a steel cage, allowing it to be used without a dedicated inner ring when the shaft is appropriately hardened and ground. This configuration maximizes effective bearing diameter and provides a simple yet robust solution for transmitting high radial loads with precision and minimal friction.

Key Performance Advantages:

  • High Radial Load Capacity: Exceptional load-bearing capability in a compact design.
  • Space-Saving: Minimal cross-section allows for smaller, more efficient machine designs.
  • Separable Components: Easy to handle and install, simplifying assembly.
  • Durable Construction: The steel cage provides robustness and reliable performance.

Data sheet

Inner Diameter
35
Outer Diameter
40
Width
20
Weight
0,03
Category
Needle Roller And Cage Assembly
