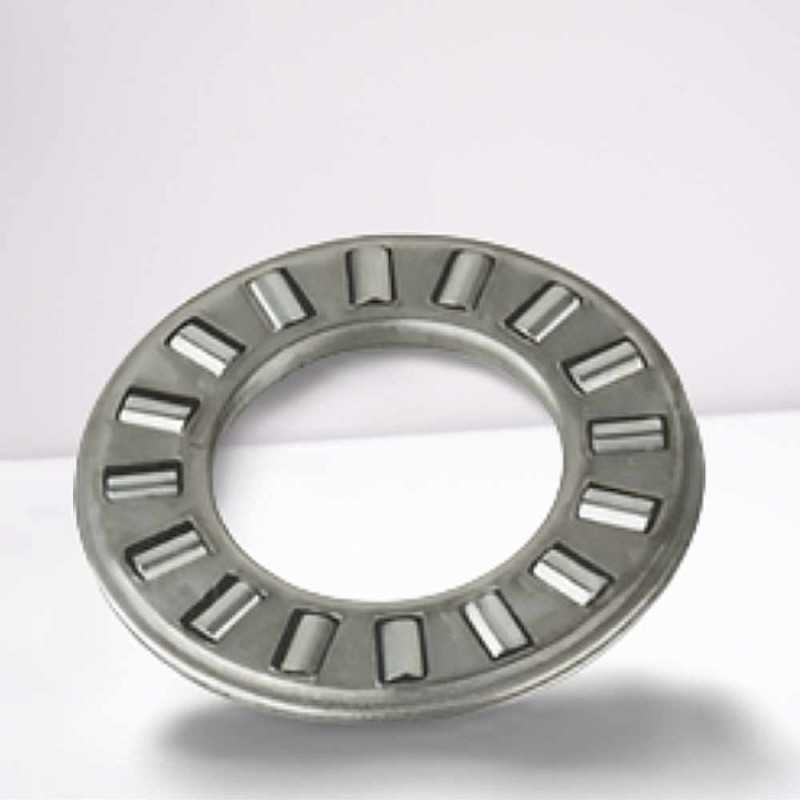

NTA-815 RICH 12,7x23,8x1,984
The NTA-815 RICH is an axial needle roller bearing and cage assembly (12.7x23.8x1.984 mm) with a steel cage, optimized for heavy axial loads in limited space.
NTA-815 RICH Axial Needle Roller Bearing and Cage Assembly - 12.7 x 23.8 x 1.984 mm
Technical Specifications:
- Brand: RICH
- Type: Axial Needle Roller Bearing and Cage Assembly
- Model: NTA-815
- Dimensions: 12.7 x 23.8 x 1.984 mm
- Inner Diameter (d): 12.7 mm
- Outer Diameter (D): 23.8 mm
- Width/Height (B): 1.984 mm
- Cage Material: Steel
- Weight: 0.002 kg
- Country of Origin: China
The NTA-815 RICH is a precision axial needle roller bearing and cage assembly, manufactured by RICH with ultra-compact dimensions of 12.7 x 23.8 x 1.984 mm.
This assembly is specifically engineered to accommodate heavy axial loads and peak loads in applications where axial space is severely limited. The design features a large number of long, thin needle rollers, guided accurately by a high-strength steel cage. The extremely small axial cross-section of the NTA-815 RICH makes it the perfect solution for use in power tools, automotive transmissions, and compact industrial machinery. It is often paired with an axial bearing washer (not included) but can run directly against hardened and ground machine components, providing maximum load distribution and rigidity with minimal friction.
Key Performance Advantages:
- High Axial Load Capacity: Optimized to handle significant forces in the axial direction.
- Extremely Compact: Minimal axial section height (1.984 mm) saves space.
- Precision and Rigidity: Steel cage ensures stable guidance of the needle rollers.
- Low Friction: Offers efficient rotational movement under load.
Data sheet
Inner Diameter
12,7
Outer Diameter
23,8
Width
1,984
Weight
0,002
