SCE-47 RICH 6,35x11,11x11,13 SCE47 RICH
zoom_out_map
SCE-47 RICH 6,35x11,11x11,13 SCE47 RICH

SCE-47 RICH 6,35x11,11x11,13

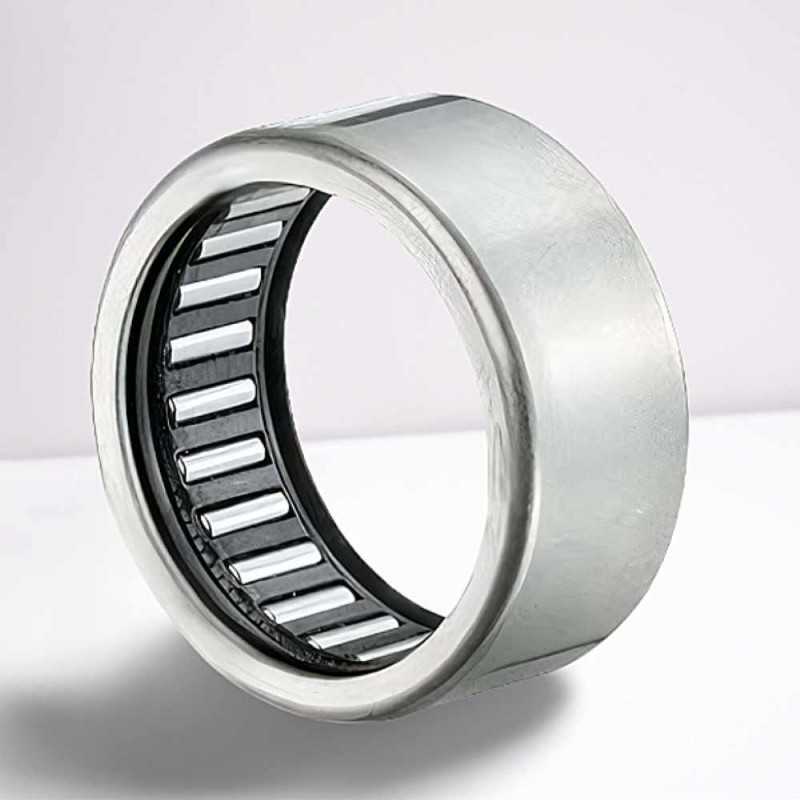

The SCE-47 RICH is an open needle roller bearing without an inner ring (6.35x11.11x11.13 mm) with a steel cage, offering high radial capacity in a compact space.

RICH
SCE47
€0.41
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

SCE-47 RICH Needle Roller Bearing without Inner Ring - 6.35 x 11.11 x 11.13 mm

Technical Specifications:

  • Brand: RICH
  • Type: Needle Roller Bearing without Inner Ring (Drawn Cup)
  • Model: SCE-47
  • Dimensions: 6.35 x 11.11 x 11.13 mm
  • Bore Diameter (d): 6.35 mm
  • Outer Diameter (D): 11.11 mm
  • Width (B): 11.13 mm
  • Cage Material: Steel
  • Weight: 0.004 kg
  • Country of Origin: China

The SCE-47 RICH is a precision needle roller bearing without an inner ring, manufactured by RICH with compact metric dimensions of 6.35 x 11.11 x 11.13 mm.

This type of bearing, often referred to as a drawn cup needle roller bearing, is a highly space-efficient solution known for its high radial load capacity and minimal cross-section. Because it lacks an inner ring, the bearing uses the shaft surface itself as the raceway; this surface must be hardened and ground for optimal performance. The SCE-47 RICH is an ideal choice for applications where radial space is at a premium and high load support is required, such as in automotive transmissions, power tools, and gearboxes. The internal assembly features a robust steel cage that ensures stable guidance of the needle rollers, maintaining performance even under high speed and demanding conditions.

Key Performance Advantages:

  • Minimal Cross-Section: Extremely space-saving design.
  • High Radial Load Capacity: Excellent capacity relative to its size.
  • Rigid Construction: High-strength steel cage ensures stable roller guidance.
  • Cost-Effective Design: Eliminates the need for a separate inner ring.

Data sheet

Inner Diameter
6,35
Outer Diameter
11.11
Width
11,13
Weight
0,004
Category
Needle Roller Bearing
