NTA 4052 RICH 63,5x82,55x1,984 NTA-4052 RICH
search
  • NTA 4052 RICH 63,5x82,55x1,984 NTA-4052 RICH

NTA 4052 RICH 63,5x82,55x1,984

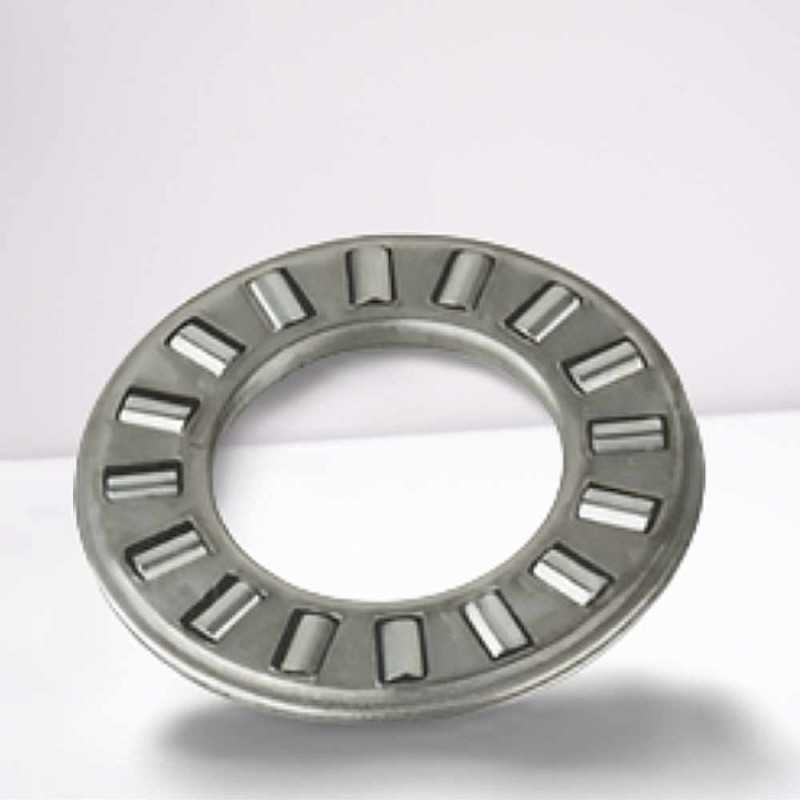

The NTA 4052 RICH is an Axial Needle Roller and Cage Assembly (63.5x82.55x1.984 mm) with a steel cage for high thrust loads in confined spaces.

RICH
NTA-4052
€5.06
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

NTA 4052 RICH Axial Needle Roller and Cage Assembly - 63.5 x 82.55 x 1.984 mm

Technical Specifications:

  • Brand: RICH
  • Type: Axial Needle Roller and Cage Assembly (Thrust)
  • Model: NTA 4052
  • Dimensions: 63.5 x 82.55 x 1.984 mm
  • Inner Diameter (d): 63.5 mm
  • Outer Diameter (D): 82.55 mm
  • Height (B): 1.984 mm
  • Cage Material: Steel
  • Weight: 0.018 kg
  • Country of Origin: China

The NTA 4052 RICH is a high-precision Axial Needle Roller and Cage Assembly specifically engineered for thrust applications where high load capacity and minimal axial space are critical. Manufactured by RICH, this assembly features metric dimensions of 63.5 x 82.55 x 1.984 mm.

The component consists of a robust steel cage that guides and retains a large number of hardened needle rollers. This design provides the highest possible load-carrying capability for a given axial cross-section. The extremely small axial height of the assembly makes it ideal for integrating into heavy-duty gearboxes, automotive transmissions, and compact industrial machinery. The NTA 4052 RICH must be used with hardened and ground raceways, typically provided by companion thrust washers (AS series) or suitably hardened adjacent machine components.

Key Performance Advantages:

  • High Axial Load Capacity: Large complement of needle rollers provides superior thrust load support.
  • Minimal Axial Space: Extremely small cross-section (1.984 mm height) for space-constrained designs.
  • Steel Cage: Ensures precise roller retention and reliable operation under high load.
  • Separable Design: Easy mounting and interchangeability with standard thrust washers.

Data sheet

Inner Diameter
63.5
Outer Diameter
82.55
Width
1.984
Weight
0,018
