BR 486024 RICH 76,2x95,25x38,1 BR 486024 RICH
search
  • BR 486024 RICH 76,2x95,25x38,1 BR 486024 RICH

BR 486024 RICH 76,2x95,25x38,1

The BR 486024 RICH Needle Roller Bearing Without Inner Ring (76.2x95.25x38.1 mm) features a steel cage for high radial load capacity.

RICH
BR 486024
€13.86
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

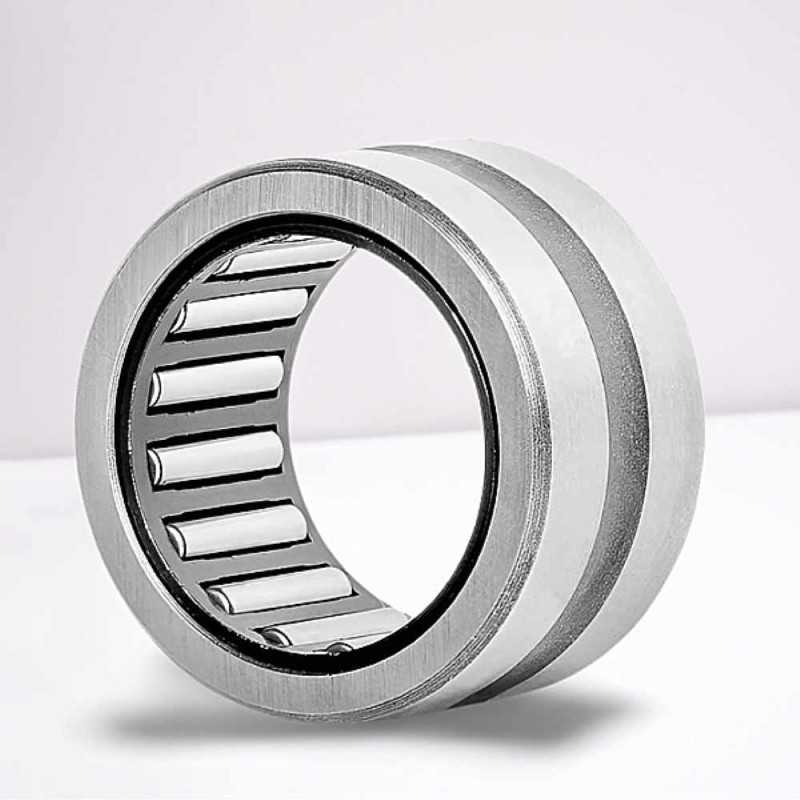

BR 486024 RICH Needle Roller Bearing Without Inner Ring - Steel Cage - 76.2 x 95.25 x 38.1 mm

Technical Specifications:

  • Brand: RICH
  • Type: Needle Roller Bearing Without Inner Ring
  • Model: BR 486024
  • Dimensions (ID x OD x W): 76.2 x 95.25 x 38.1 mm
  • Inner Diameter (ID): 76.2 mm
  • Outer Diameter (OD): 95.25 mm
  • Width (W): 38.1 mm
  • Cage Material: Steel
  • Weight: 0.568 kg
  • Country of Origin: China

The BR 486024 RICH is a reliable, large-sized Needle Roller Bearing Without Inner Ring produced by RICH, designed to deliver exceptional radial load capacity where minimal cross-section height is crucial. With dimensions of 76.2 x 95.25 x 38.1 mm, this bearing is specifically engineered to utilize the shaft as the inner raceway, which maximizes the space available for rolling elements and significantly enhances load-carrying capability.

This high-performance component features a durable steel cage that accurately spaces and guides the needle rollers, ensuring uniform load distribution, promoting high rigidity, and maintaining stable operation under continuous stress. Its robust and space-efficient design makes the BR 486024 RICH an ideal component for maximizing power density in demanding applications such as heavy-duty gear systems, construction equipment, and compact hydraulic machinery where the shaft raceway can be precisely prepared.

Key Performance Advantages:

  • Maximum Radial Load: High complement of rollers provides superior load capacity for heavy-duty use.
  • Space-Saving Design: Eliminates the need for an inner ring, providing the smallest possible radial envelope.
  • High Rigidity: Steel cage ensures precise roller guidance and excellent stiffness for demanding applications.
  • Durable Operation: Suitable for use with a hardened and ground shaft serving as the inner raceway.

Data sheet

Inner Diameter
76,2
Outer Diameter
95,25
Width
38,1
Weight
0,568
Category
Needle Roller Bearing
