HFL 283625 RICH 28x36x25 HFL283625 RICH
search
  • HFL 283625 RICH 28x36x25 HFL283625 RICH

HFL 283625 RICH 28x36x25

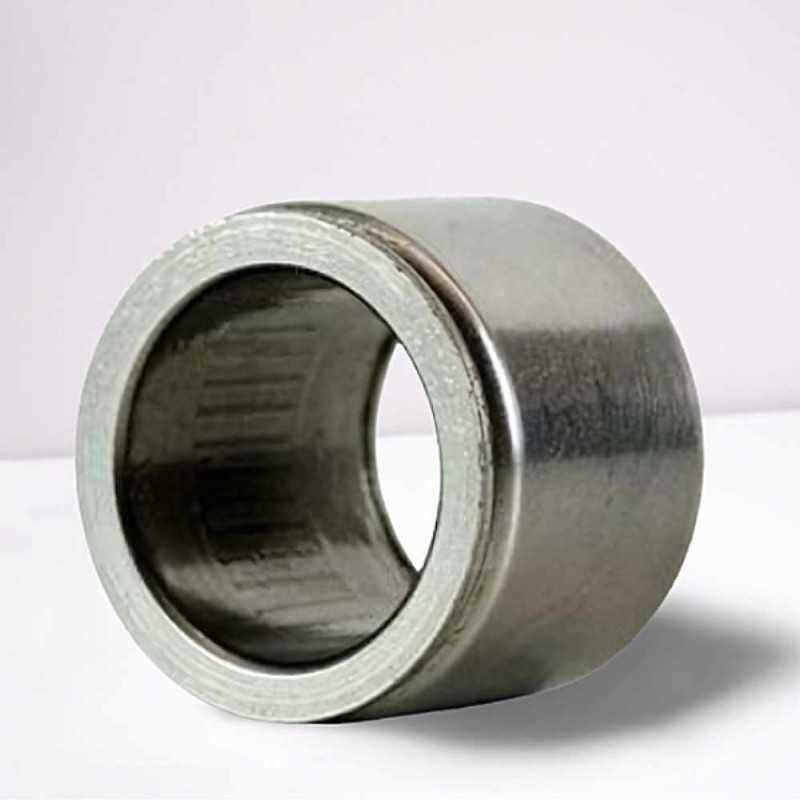

HFL 283625 RICH Drawn Cup Roller Clutch with Bearing (Alternator Bearing). Dimensions 28 x 36 x 25 mm for one-way power transmission.

RICH
HFL283625
€3.95
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

HFL 283625 RICH Drawn Cup Roller Clutch with Bearing (Alternator Bearing) - 28 x 36 x 25 mm

Technical Specifications:

  • Product Type: Drawn Cup Roller Clutch with Bearing
  • Model Designation: HFL 283625
  • Brand: RICH
  • Feature: Alternator Bearing
  • Bore Diameter (d): 28 mm
  • Outer Diameter (D): 36 mm
  • Width (B): 25 mm
  • Weight: 0.066 kg
  • Country of Origin: China

The HFL 283625 RICH is a combined unit serving as both a drawn cup roller clutch (one-way clutch) and a supporting needle roller bearing. Manufactured by RICH, this compact assembly is often used as an alternator bearing to manage torque and allow freewheeling action. It features precise dimensions of 28 mm bore, 36 mm outer diameter, and 25 mm width. The integral roller clutch allows torque transmission in one direction while freewheeling in the opposite direction. The integrated needle roller bearing provides high radial load capacity and high-speed capability in a small space. This combination is highly effective in drive systems, particularly for decoupling and minimizing vibration and noise, making it ideal for automotive and light industrial applications.

Key Performance Advantages:

  • Dual Functionality: Combines a roller clutch and a needle roller bearing in one compact unit.
  • Overrunning Capability: Roller clutch enables torque transfer in one direction and freewheeling in the other.
  • High Load Capacity: Integrated needle roller bearing offers excellent radial load support in a small radial cross-section.
  • Alternator Optimized: Ideal for managing rotational forces and achieving smooth performance in alternator drives.
  • RICH Quality: Provides a highly efficient and reliable solution for one-way drive systems.

Data sheet

Inner Diameter
28
Outer Diameter
36
Width
25
Weight
0,066
Category
Drawn Cup Roller Clutch
