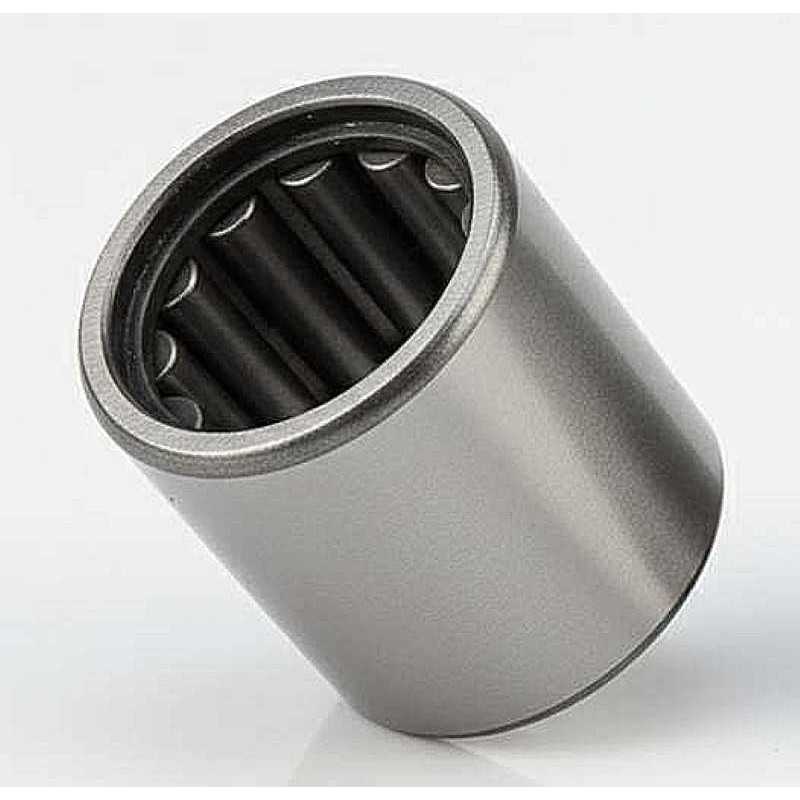

BKM 2024 J RS RICH Needle Roller Bearing without Inner Ring - 20 x 27 x 23.5 mm
OE References:
Technical Specifications:
- Product Type: Needle roller bearing without inner ring
- Model Designation: BKM 2024 J RS
- Brand: RICH
- Bore Diameter (Fw): 20 mm
- Outer Diameter (D): 27 mm
- Width (C): 23.5 mm
- Sealing: RS (One-sided plastic contact seal)
- Cage Material: Steel
- Weight: 0.03 kg
- Country of Origin: China
The BKM 2024 J RS RICH is a precision-engineered needle roller bearing without an inner ring, designed for mechanical assemblies where the shaft is hardened and ground to act as the raceway. With dimensions of 20 mm bore, 27 mm outer diameter, and 23.5 mm width, this bearing provides a high radial load-carrying capacity within an extremely compact radial cross-section. This design is ideal for reducing the overall size and weight of machinery without compromising structural stiffness.
This model is equipped with a one-sided plastic contact seal (RS), which offers effective protection against the ingress of contaminants on one side while allowing for specific lubrication configurations. The robust steel cage ensures optimal needle roller guidance and stability during high-speed operation. The BKM 2024 J RS RICH is a high-quality replacement part, notably cross-referenced with Suzuki 09263-20073, making it a reliable choice for automotive transmissions, motorcycle engines, and various power transmission systems.
Key Performance Advantages:
- Ultra-Compact Profile: Eliminating the inner ring minimizes the radial space required for installation.
- RS Contact Sealing: Protects internal rolling elements from dust and debris on the sealed side.
- High Radial Rigidity: Optimized needle roller set provides stable support for heavy radial loads.
- Direct OE Compatibility: Precisely engineered to match the specifications of Suzuki 09263-20073.
Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and technical data are used for identification purposes and do not imply affiliation with other manufacturers.
