RF 374223-1 RICH 37x42x23

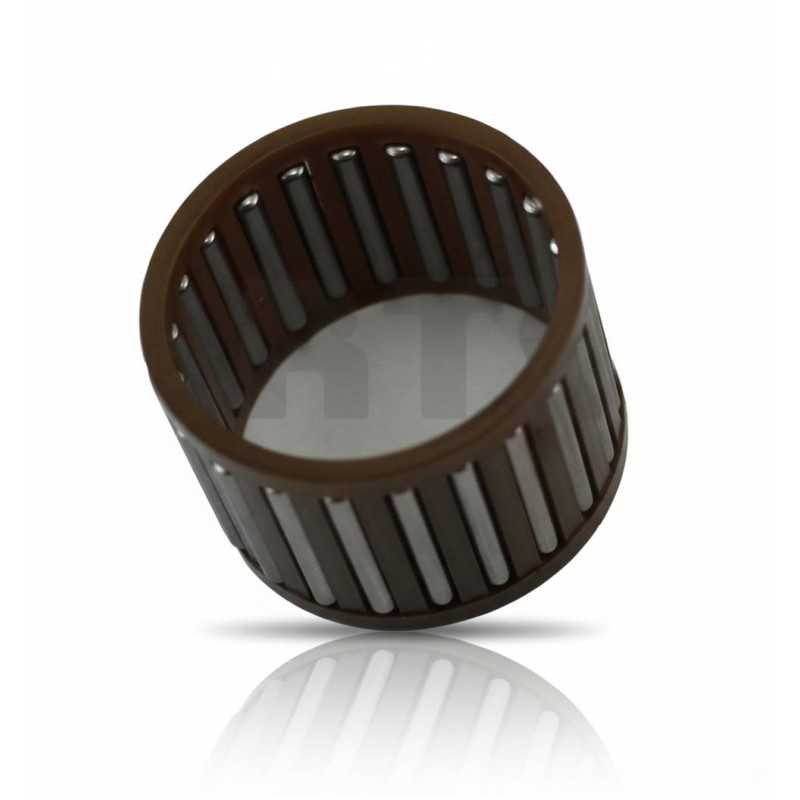

RF 374223-1 RICH Needle Roller and Cage Assembly – 37 × 42 × 23 mm

OE References:

• NISSAN 32264-6J002

Technical Specifications:

• Type: Needle roller and cage assembly
• Brand: RICH
• Model Designation: RF 374223-1 RICH
• Inner Diameter (Fw): 37 mm
• Outer Diameter (Ew): 42 mm
• Width (Bc): 23 mm
• Weight: 0.02 kg
• Category: Needle Roller Bearing
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Independent bearing element consisting of a specific cage guide and precision needle rollers, designed for space-optimized radial support.
• Material Composition: Constructed with high-carbon chromium steel rollers to ensure maximum load capacity and wear resistance.
• Design Feature: Lightweight 0.02 kg assembly engineered for high-speed stability and minimal radial cross-section.
• Operational Logic: Designed for applications where the shaft and housing are used as raceways, providing a high degree of stiffness and load-carrying capability.
• Dimensional Format: 37 × 42 × 23 mm configuration, optimized for automotive and industrial gearbox transmissions.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
