BHM 3518 RICH 35x45x18

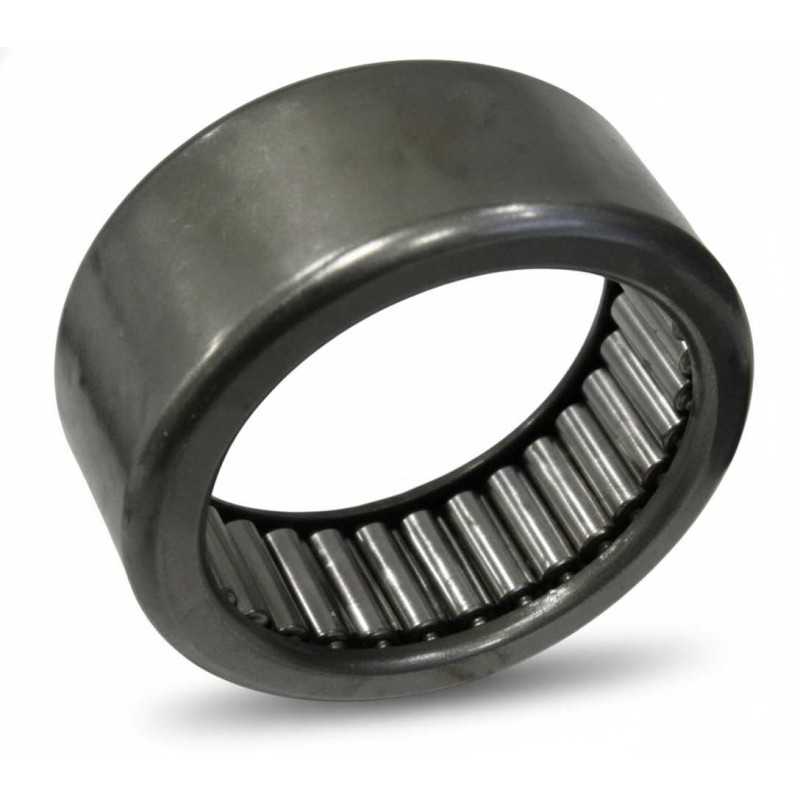

BHM 3518 RICH – Needle Roller Bearing Without Inner Ring – 35 x 45 x 18 mm

Technical Specifications:

• Type: Needle roller bearing without inner ring
• Brand: RICH
• Model Designation: BHM 3518
• Inner Diameter (d): 35 mm
• Outer Diameter (D): 45 mm
• Width (C): 18 mm
• Cage: None (Full Complement)
• Lubrication: None (Requires external lubrication)
• Weight: 0.07 kg
• Country of Origin: China

Performance Characteristics:

• Full Complement Configuration: Designed without a cage to accommodate the maximum number of needle rollers, ensuring exceptionally high radial load carrying capacity.
• Radial Space Efficiency: The absence of an inner ring allows for a low-profile design where the shaft acts as the direct raceway, ideal for compact mechanical assemblies.
• Structural Rigidity: Engineered for high stiffness and minimal radial section height, providing stable rotation in high-load industrial or automotive environments.
• Mechanical Interface: 35 x 45 x 18 mm dimensional format manufactured to rigorous industrial standards for precise fitment and long-term durability.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
