BHM 1720 RICH 17x24x20

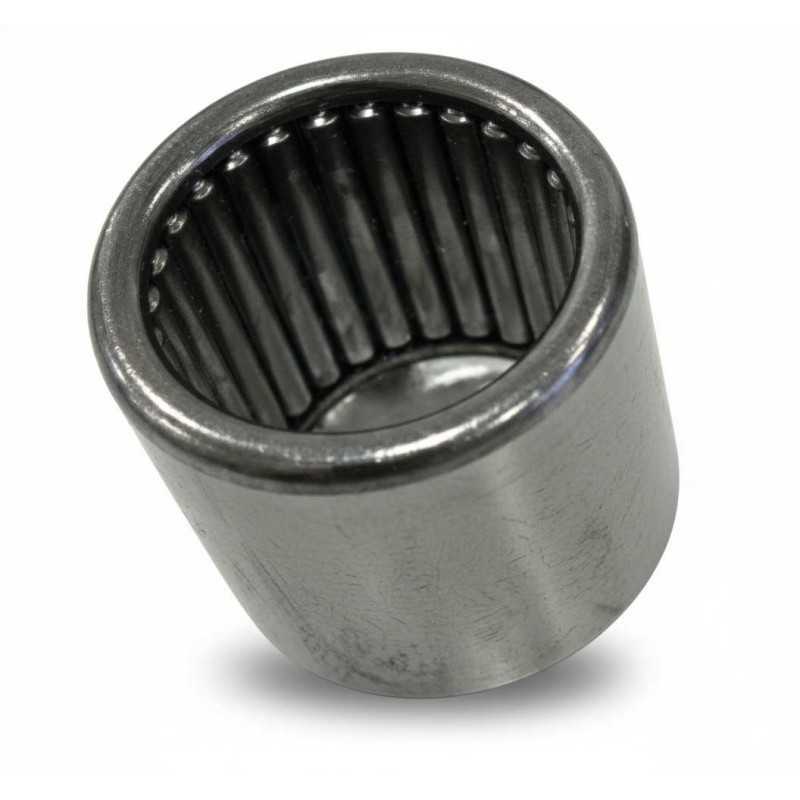

BHM 1720 RICH – Needle Roller Bearing Without Inner Ring – 17 x 24 x 20 mm

OE Reference:

• YAMAHA: 93315-31771
• SUZUKI: 09263-17027
• SUZUKI: 52188-43B00

Technical Specifications:

• Type: Needle roller bearing without inner ring
• Brand: RICH
• Model Designation: BHM 1720
• Inner Diameter (d): 17 mm
• Outer Diameter (D): 24 mm
• Width (C): 20 mm
• Cage: None (Full Complement)
• Lubrication: None (Requires external lubrication)
• Weight: 0.031 kg
• Country of Origin: China

Performance Characteristics:

• Full Complement Design: Engineered without a cage to incorporate the maximum number of needle rollers, providing a very high radial load carrying capacity relative to its size.
• Radial Space Efficiency: Designed for applications where the shaft is hardened and ground to act as the raceway, allowing for a significantly reduced radial cross-section.
• Structural Stability: Provides high mechanical stiffness and precision, making it suitable for compact automotive and powersports transmission or linkage systems.
• Mechanical Interface: 17 x 24 x 20 mm dimensional format manufactured to rigorous tolerances for seamless compatibility with Yamaha and Suzuki original equipment.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
