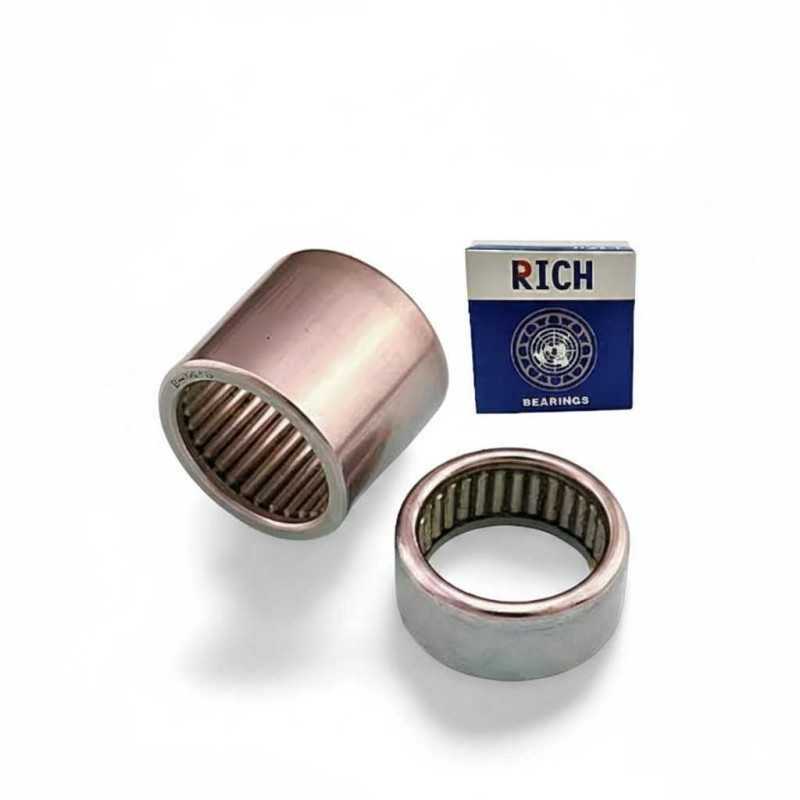

BH 1112 RICH 17,463x23,812x19,05

BH 1112 RICH – Needle Roller Bearing Without Inner Ring – 17.463 x 23.812 x 19.05 mm

Technical Specifications:

• Type: Needle roller bearing without inner ring
• Brand: RICH
• Model Designation: BH 1112
• Inner Diameter (d): 17.463 mm
• Outer Diameter (D): 23.812 mm
• Width (C): 19.05 mm
• Cage: None (Full Complement)
• Lubrication: None (Requires external lubrication)
• Weight: 0.03 kg
• Country of Origin: China

Performance Characteristics:

• Full Complement Design: Specifically engineered without a cage to utilize the maximum number of needle rollers, providing superior radial load-carrying capacity for heavy-duty applications.
• Imperial Dimensional Format: Precision-manufactured to inch-based specifications (11/16" x 15/16" x 3/4"), ensuring exact compatibility with machinery utilizing imperial mounting standards.
• Space Optimization: The absence of an inner ring allows the shaft to function as the raceway, significantly reducing the radial cross-section and total assembly weight.
• Mechanical Rigidity: Produced to rigorous industrial tolerances to ensure minimal friction and high structural stability under demanding rotational loads.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
