BR405224 RICH 63,5x82,55x38,1

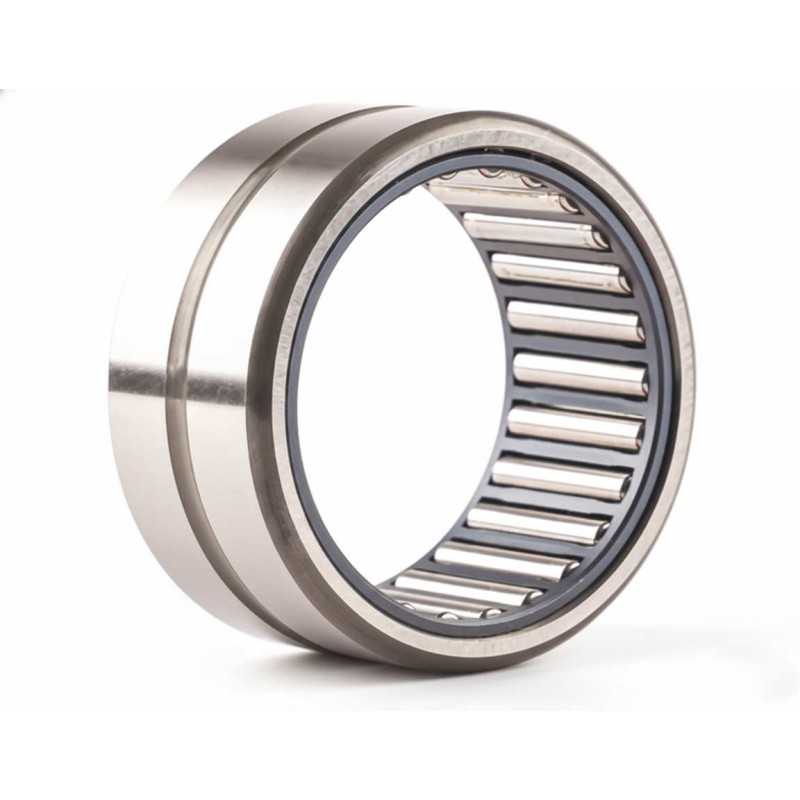

BR405224 RICH – Needle Roller Bearing Without Inner Ring – 63.5 x 82.55 x 38.1 mm

Technical Specifications:

• Type: Needle roller bearing without inner ring
• Brand: RICH
• Model Designation: BR405224
• Under-Roller Diameter (d): 63.5 mm
• Outer Diameter (D): 82.55 mm
• Width (C): 38.1 mm
• Cage Material: Steel (rolling element guided)
• Weight: 0.501 kg
• Country of Origin: China

Construction Features:

• Component Design: The system features a ringless interior layout designed to operate directly on a ground and hardened shaft surface to save critical radial design area.
• Internal Configuration: The layout uses a dense set of high-precision needle rollers securely spaced and guided by a robust, rolling element guided sheet steel cage assembly.
• Dimensional Profile: The physical envelope features a 63.5 mm inner race envelope path, an 82.55 mm outside diameter, and an axial ring profile width of 38.1 mm.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
