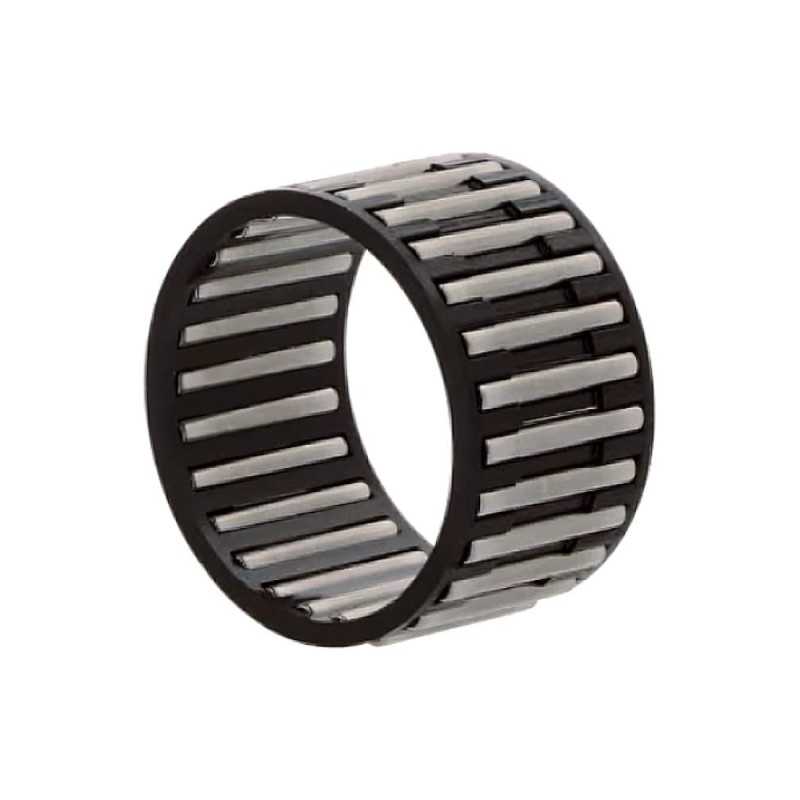

K 12x15x10 RICH Needle Roller and Cage Assembly - 12 x 15 x 10 mm

The K 12x15x10 RICH is a needle roller and cage assembly designed for applications requiring high load-carrying capacity in a small radial space. This assembly has key dimensions of 12 mm inner diameter, 15 mm outer diameter, and a width of 10 mm. It features a steel cage and weighs approximately 0.003 kg. It is made in China. Needle roller and cage assemblies do not have inner or outer rings; instead, the rolling elements are guided and retained by the cage. This design allows for direct contact with the shaft and housing bore when these surfaces are suitably hardened and ground, resulting in a compact and economical bearing solution with a high radial load capacity.

Key Specifications:

  • Assembly Type: Needle Roller and Cage Assembly
  • Model:** K 12x15x10 RICH
  • Inner Diameter (d): 12 mm
  • Outer Diameter (D): 15 mm
  • Width (B):** 10 mm
  • Cage Material:** Steel
  • Weight:** 0.003 kg
  • Country of Origin:** China

Key Features:

  • Compact Design:** Offers a very low radial section height.
  • High Load Capacity:** Needle rollers provide a large contact area for high radial loads.
  • Steel Cage:** Ensures precise roller guidance and retention.
  • Economical Solution:** Utilizes hardened and ground shaft and housing bore as raceways.
  • Versatile Application:** Suitable for various applications where space is limited and high radial loads are present.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
12
Outer Diameter
15
Width
10
Weight
0,003
Cage
Steel Cage
Category
Needle Roller And Cage Assembly
