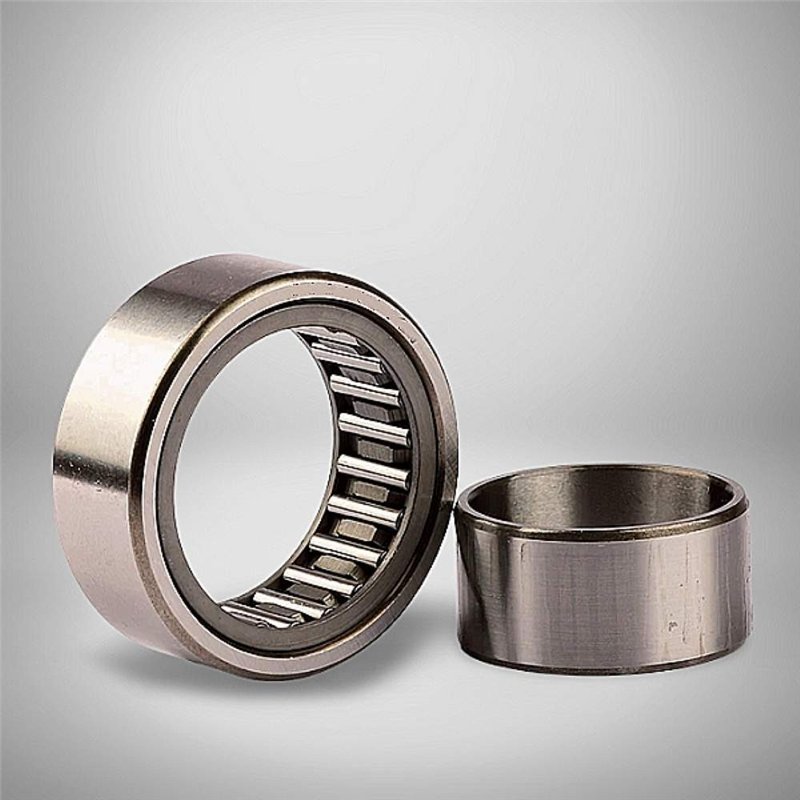

Needle Roller Bearing with Inner Ring NKI 90/36 RICH - 90 x 120 x 36 mm

The NKI 90/36 RICH is a needle roller bearing that includes an inner ring, making it suitable for applications where the shaft cannot be hardened and ground to serve as a raceway. This type of bearing offers a high load-carrying capacity and high stiffness within a relatively small radial cross-section. The integrated inner ring provides a hardened and precision-ground raceway for the needle rollers, ensuring optimal performance and extended service life. It features a robust steel cage that precisely guides the needle rollers, contributing to smooth and efficient operation. This bearing is particularly effective in applications with oscillating movements or where substantial radial loads need to be accommodated. Its dimensions are a 90 mm bore diameter, 120 mm outer diameter, and 36 mm width, with a weight of 1.177 kg. This product is manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller Bearing with Inner Ring
  • Dimensions: 90 mm bore diameter x 120 mm outer diameter x 36 mm width
  • Weight: 1.177 kg
  • Cage: Steel
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • High load-carrying capacity
  • High stiffness
  • Includes inner ring for softer shafts
  • Compact radial cross-section
  • Durable steel cage
  • Suitable for oscillating movements and heavy radial loads

Data sheet

Inner Diameter
90
Outer Diameter
120
Width
36
Weight
1,1
Roller Rows
Single Row
Category
Needle Roller Bearing with Inner Ring
