HK2524-2RS RICH 25x32x24
Rating:
(0)
EUR €
- EUR €
- USD $

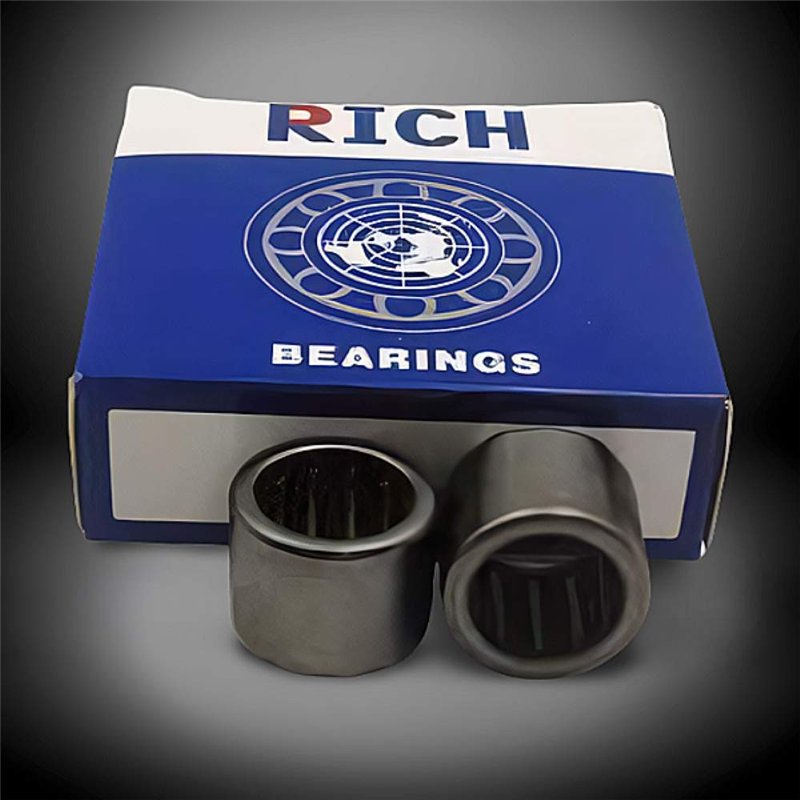

HK 2524.2RS RICH Needle Roller Bearing Without Inner Ring - 25 x 32 x 24 mm
The HK 2524.2RS RICH is a sealed needle roller bearing without an inner ring, designed for compact applications where a hardened and ground shaft can serve as the inner raceway. This bearing has key dimensions of 25 mm inner diameter, 32 mm outer diameter, and a width of 24 mm. It features a steel cage to precisely guide the needle rollers and is equipped with double-sided rubber contact seals (2RS) for enhanced protection against contaminants. It weighs 0.036 kg and is made in China.
Key Specifications:
- Bearing Type: Needle Roller Bearing Without Inner Ring (Drawn Cup Needle Roller Bearing)
- Model:** HK 2524.2RS RICH
- Inner Diameter (d):** 25 mm
- Outer Diameter (D):** 32 mm
- Width (B):** 24 mm
- Cage Material:** Steel
- Sealing:** Double-sided rubber, contact (-2RS)
- Weight:** 0.036 kg
- Country of Origin:** China
Key Features:
- Needle Roller Design:** Provides a high load-carrying capacity with a small radial section height.
- Without Inner Ring:** Designed to run directly on a hardened and ground shaft, offering a very compact and cost-effective bearing solution.
- Sealed Construction (-2RS):** Features double-sided rubber contact seals for effective protection against dust, dirt, and moisture, extending bearing life and reducing maintenance.
- Steel Cage:** Ensures accurate guidance and spacing of the needle rollers for smooth operation.
- Compact Dimensions:** Ideal for applications with limited space.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
25
Outer Diameter
32
Width
24
Weight
0,03
Sealing
Lip Seal On Both Sides
Cage
Steel Cage
Clearance
CN (Normal)
Category
Needle Roller Bearing
