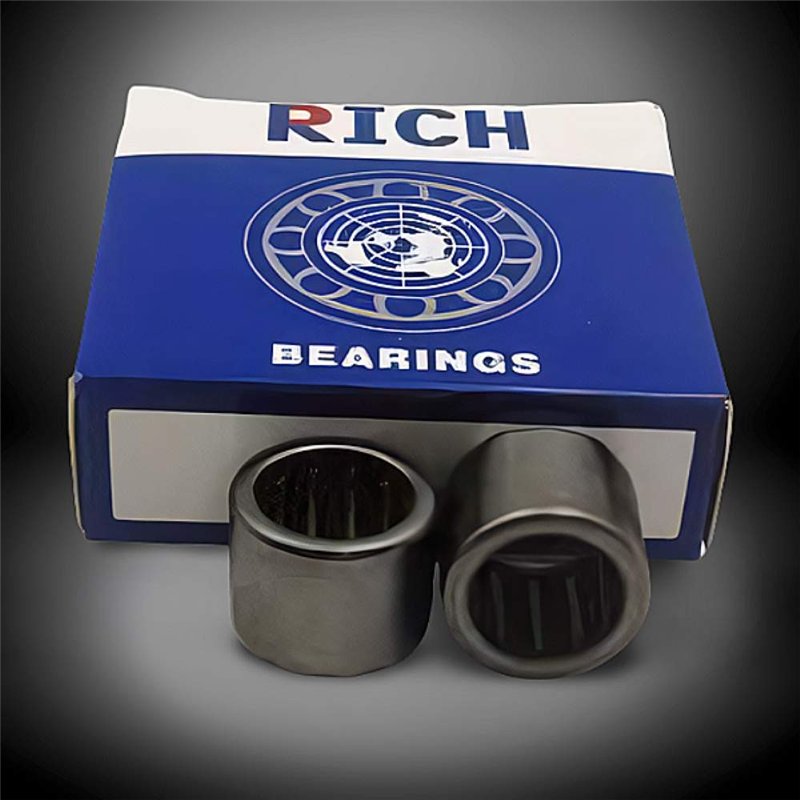

HK3024-2RS RICH 30x37x24
Rating:
(0)
EUR €
- EUR €
- USD $
HK3024-2RS RICH Needle Roller Bearing Without Inner Ring - 30 x 37 x 24 mm, Sealed
The HK3024-2RS RICH is a drawn cup needle roller bearing without an inner ring, featuring double-sided rubber contact seals (2RS) for enhanced protection against contaminants. This bearing is designed for applications where a hardened and ground shaft serves as the inner raceway, offering a compact and cost-effective bearing solution with a high radial load capacity. It has key dimensions of 30 mm inner diameter, 37 mm outer diameter, and a width of 24 mm. It features a steel cage and weighs approximately 0.047 kg. It is made in China. The double-sided seals make it suitable for environments with potential exposure to dust and moisture.
Key Specifications:
- Type:** Drawn Cup Needle Roller Bearing Without Inner Ring, Sealed
- Model:** HK3024-2RS RICH
- Inner Diameter (d): 30 mm
- Outer Diameter (D): 37 mm
- Width (B): 24 mm
- Cage Material:** Steel
- Sealing:** Double-sided rubber contact seals (2RS)
- Weight:** 0.047 kg
- Country of Origin:** China
Key Features:
- Drawn Cup Design:** Provides a thin outer section for maximum space utilization.
- Without Inner Ring:** Economical solution where the shaft serves as the inner raceway.
- High Radial Load Capacity:** Needle rollers offer a large contact area for efficient load distribution.
- Double-Sided Rubber Seals:** Offers excellent protection against dust, dirt, and moisture.
- Steel Cage:** Ensures precise roller guidance and retention.
- Compact and Lightweight:** Ideal for applications with space and weight limitations.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
30
Outer Diameter
37
Width
24
Weight
0,047
Sealing
Lip Seal On Both Sides
Cage
Steel Cage
Category
Needle Roller Bearing
