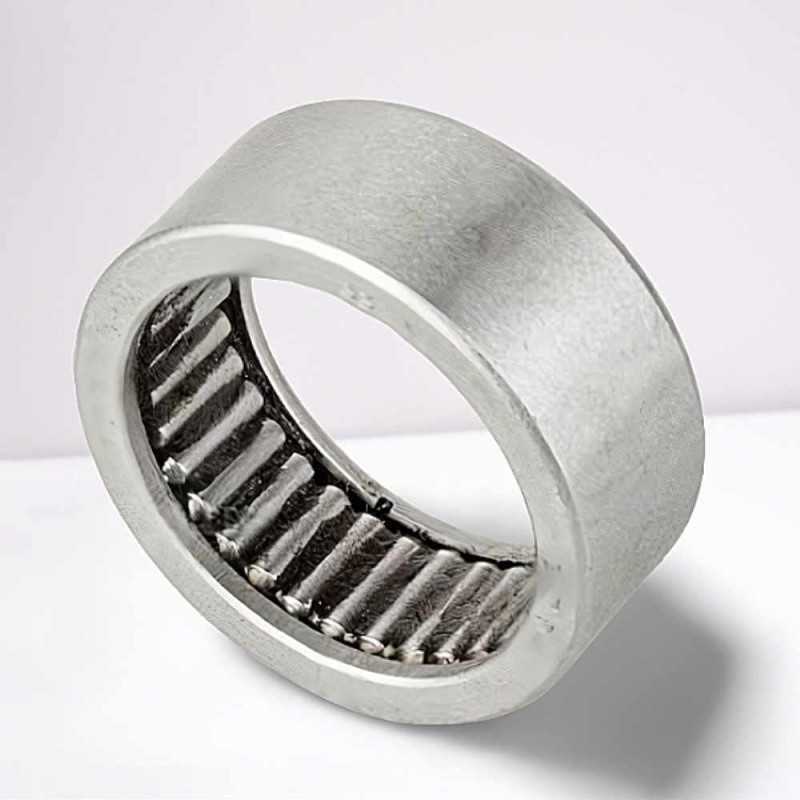

DL 3015 RICH Needle Roller Bearing without Inner Ring - 30 x 38 x 16 mm

Technical Specifications:

  • Brand: RICH
  • Type: Needle Roller Bearing without Inner Ring
  • Model: DL 3015
  • Dimensions: 30 x 38 x 16 mm
  • Roller Complement Diameter (Fw): 30 mm
  • Outer Diameter (D): 38 mm
  • Width (B): 16 mm
  • Weight: 0.037 kg
  • Cage: None
  • Country of Origin: China

The DL 3015 RICH is a heavy-duty needle roller bearing without an inner ring, manufactured by RICH to deliver maximum static and dynamic load-carrying capability within a highly compact design. This unit features precise metric dimensions of 30 x 38 x 16 mm.

This bearing utilizes a cageless design, which allows it to hold the maximum density of needle rollers possible. This construction is specifically engineered for handling extremely high radial loads and is the ideal choice for applications operating at low speeds, under high stress, or involving oscillatory motion. The thin-walled, drawn cup outer ring is intended for secure, interference-fit installation directly into the housing bore. As an inner-ringless bearing, the DL 3015 RICH requires that the mating shaft surface be appropriately hardened and ground to serve as the inner raceway, ensuring structural rigidity and optimal space efficiency in the final assembly.

Key Performance Advantages:

  • Maximum Radial Load Capacity: The cageless design uses the highest possible roller complement, providing exceptional support for heavy loads.
  • Ultra-Low Sectional Height: The drawn cup architecture and the omission of an inner ring minimize the radial space required for installation.
  • Space-Saving and Rigid: Utilizes the prepared shaft surface as the inner raceway, leading to a stiff and space-efficient overall assembly.
  • Simple, Robust Mounting: The drawn cup outer ring facilitates straightforward press-fit assembly without requiring additional axial retaining components.

Data sheet

Inner Diameter
30
Outer Diameter
38
Width
16
Weight
0,037
Category
Needle Roller Bearing
