  • K40X48X34 RICH 40x48x34 K40X48X34 RICH

K40X48X34 RICH 40x48x34

RICH
K40X48X34
€4.46
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

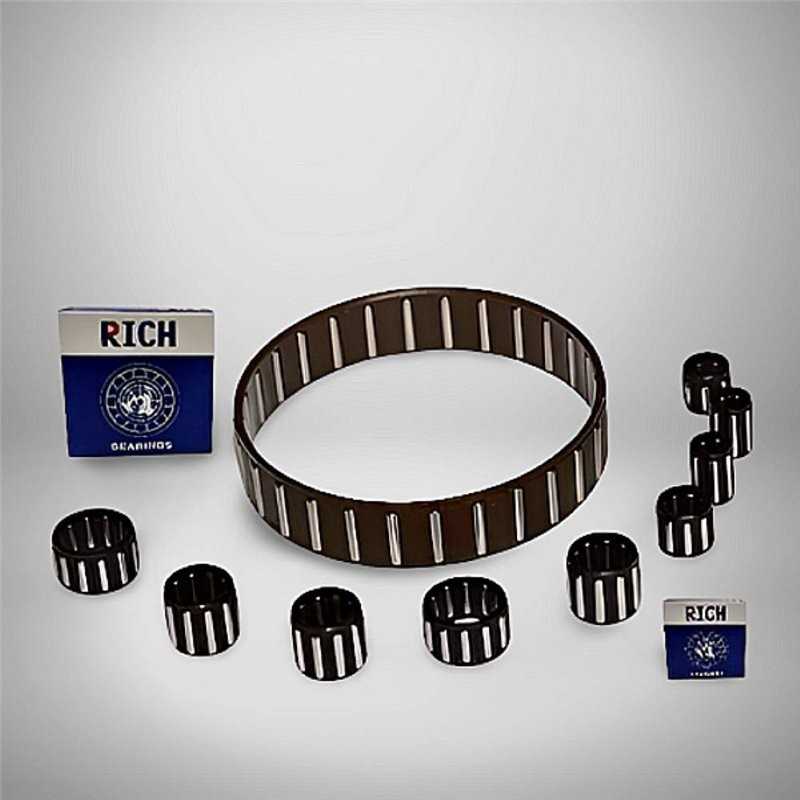

K40X48X34 RICH Needle Roller and Cage Assembly – 40 x 48 x 34 mm – High Precision, Space-Saving Design

Engineered for applications requiring high load capacity within a compact radial space. The K40X48X34 RICH needle roller and cage assembly is designed for optimal performance where bearing cross-section must be minimized. With precise dimensions of 40 mm inner diameter, 48 mm outer diameter, and a length of 34 mm, this assembly is ideal for constrained design envelopes.

This RICH needle roller and cage assembly features a robust steel cage that accurately guides and retains a large number of needle rollers. This construction provides a high load carrying capability while maintaining a small overall radial cross-section. Without inner or outer rings, these assemblies require the shaft and housing bore to serve as raceways, which must be hardened and ground to an appropriate finish for optimal performance.

Manufactured in China by RICH, this needle roller and cage assembly weighs a compact 0.09 kg. Its space-saving design and high load capacity make it an excellent choice for transmissions, gearboxes, automotive components, and other machinery where radial space is limited but significant loads must be supported efficiently.

Technical Specifications:

  • Type: Needle Roller and Cage Assembly
  • Model: K40X48X34
  • Brand: RICH
  • Inner Diameter (d): 40 mm
  • Outer Diameter (D): 48 mm
  • Width (B): 34 mm
  • Cage: Steel
  • Weight: 0.09 kg
  • Country of Origin: China

Key Performance Advantages:

  • High Load Capacity: Accommodates significant radial loads due to the large number of needle rollers.
  • Compact Radial Design: Minimal cross-section allows for use in applications with limited radial space.
  • Precision Guidance: Steel cage ensures accurate alignment and efficient operation of the rollers.
  • Cost-Effective Integration: Utilizes shaft and housing bore as raceways, potentially simplifying surrounding component design.
  • Versatile Application: Ideal for automotive transmissions, power tools, and various machinery.
  • RICH Quality Assurance: Produced in China to high manufacturing standards, guaranteeing dependable performance.

Data sheet

Inner Diameter
40
Outer Diameter
48
Width
34
Weight
0,09
Cage
Steel Cage
Category
Needle Roller And Cage Assembly
