  • HJ 142212 RICH 22,225x34,925x19,05 HJ142212 RICH

HJ 142212 RICH 22,225x34,925x19,05

RICH
HJ142212
€7.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

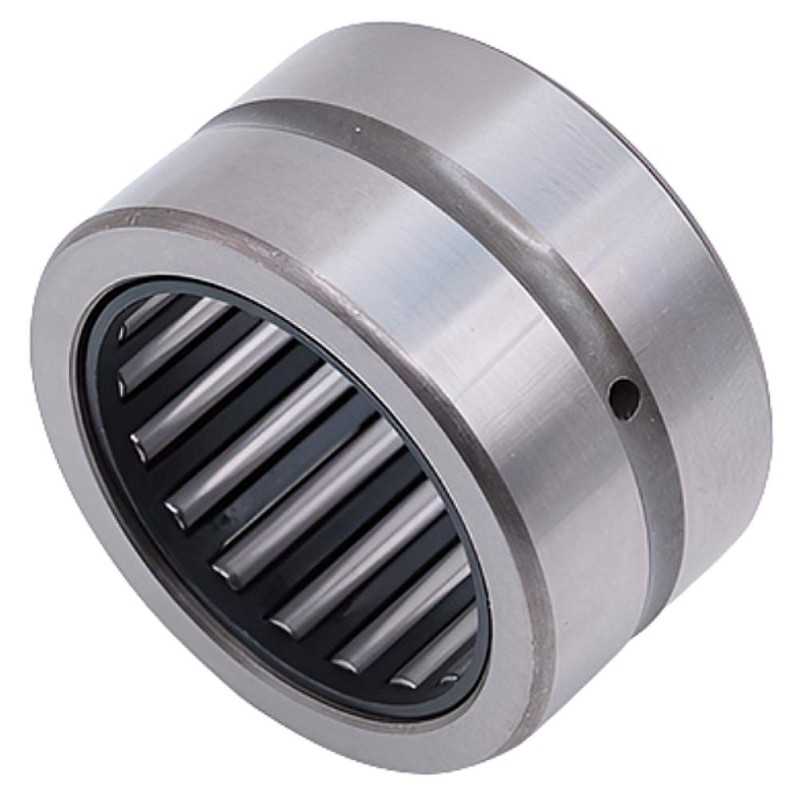

Needle Roller Bearing Without Inner Ring HJ 142212 RICH - 22.225 x 34.925 x 19.05 mm

The HJ 142212 RICH is a needle roller bearing designed without an inner ring. This makes it ideal for applications where the shaft can be hardened and precision-ground to serve as the inner raceway. This design offers a highly compact radial cross-section, making it perfectly suited for assemblies with limited space. The bearing features a robust steel cage that precisely guides the needle rollers, ensuring high load carrying capacity and stiffness. This bearing is particularly effective in oscillating movements and situations where substantial radial loads need to be managed within a small envelope. Its dimensions are a 22.225 mm bore diameter, 34.925 mm outer diameter, and 19.05 mm width, with a weight of 0.062 kg. This product is manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller Bearing Without Inner Ring
  • Dimensions: 22.225 mm bore diameter x 34.925 mm outer diameter x 19.05 mm width
  • Weight: 0.062 kg
  • Cage: Steel
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • Extremely compact radial cross-section
  • High load carrying capacity
  • High stiffness
  • Suitable for applications where shaft can serve as raceway
  • Durable steel cage
  • Economical solution for space-constrained designs

Data sheet

Inner Diameter
22.225
Outer Diameter
34.925
Width
19,05
Weight
0,052
Category
Needle Roller Bearing
