NKIS 45 RICH 45x72x22
Rating:
(0)
EUR €
- EUR €
- USD $

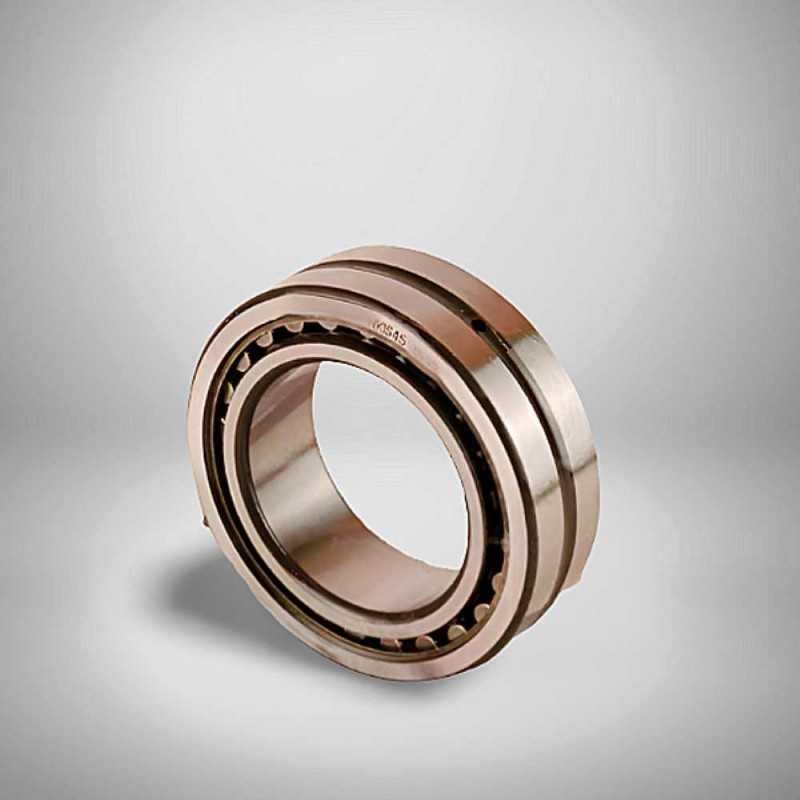

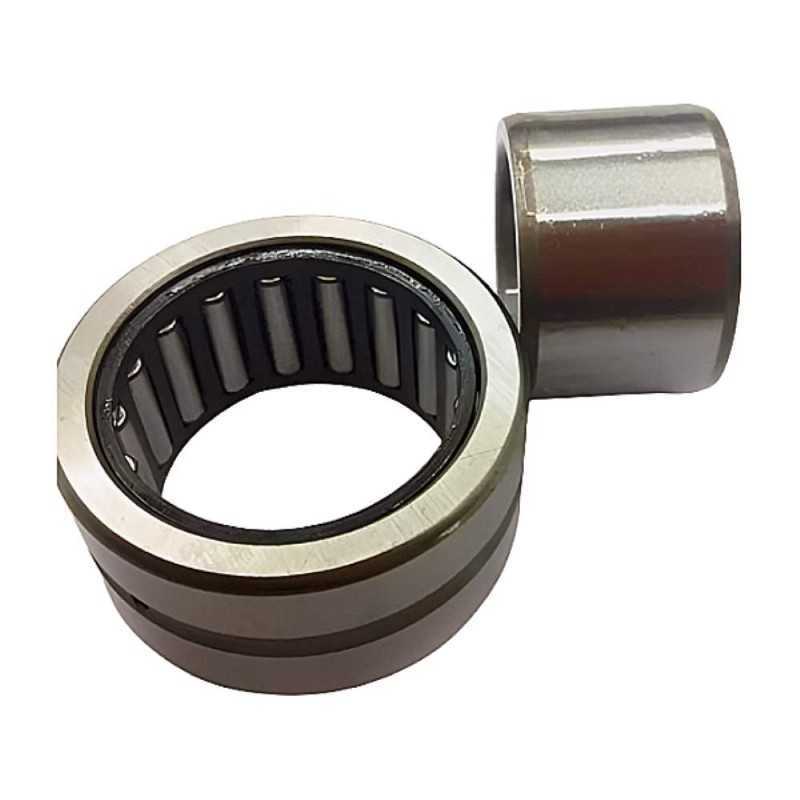

Needle Roller Bearing with Inner Ring NKIS45 RICH - 45 x 72 x 22 mm with Steel Cage
The NKIS45 RICH is a robust needle roller bearing that comes complete with a separable inner ring. This design offers high versatility, allowing for independent mounting of the inner ring, outer ring, and needle roller and cage assembly, which can simplify installation. It is particularly suitable for applications where the shaft cannot be hardened or ground to serve as a raceway, providing a ready-to-mount and durable solution. These bearings are known for their exceptionally high radial load capacity and their ability to operate effectively in compact arrangements. The precision-machined needle rollers are guided by a sturdy steel cage, which ensures accurate spacing and smooth, reliable operation even under significant loads. The dimensions of this bearing are 45 mm inner diameter, 72 mm outer diameter, and 22 mm width, with an approximate weight of 0.35 kg. Manufactured in China by RICH.
Key Specifications:
- Type: Needle Roller Bearing with Inner Ring (Separable)
- Dimensions: 45 mm inner diameter x 72 mm outer diameter x 22 mm width
- Weight: 0.35 kg
- Cage Material: Steel
- Country of Origin: China
- Brand: RICH
Key Advantages:
- Very High Radial Load Capacity
- Integrated and Separable Inner Ring - Ideal when the shaft cannot be used as a raceway and simplifies mounting.
- Compact Design for its load capacity.
- Smooth and Reliable Operation due to the steel cage.
- Durable Construction for long service life.
Data sheet
Inner Diameter
45
Outer Diameter
72
Width
22
Weight
0,35
Clearance
CN (Normal)
Category
Needle Roller Bearing
