  • MR 14 RICH 22,248x34,925x25,4 MR14 RICH

MR 14 RICH 22,248x34,925x25,4

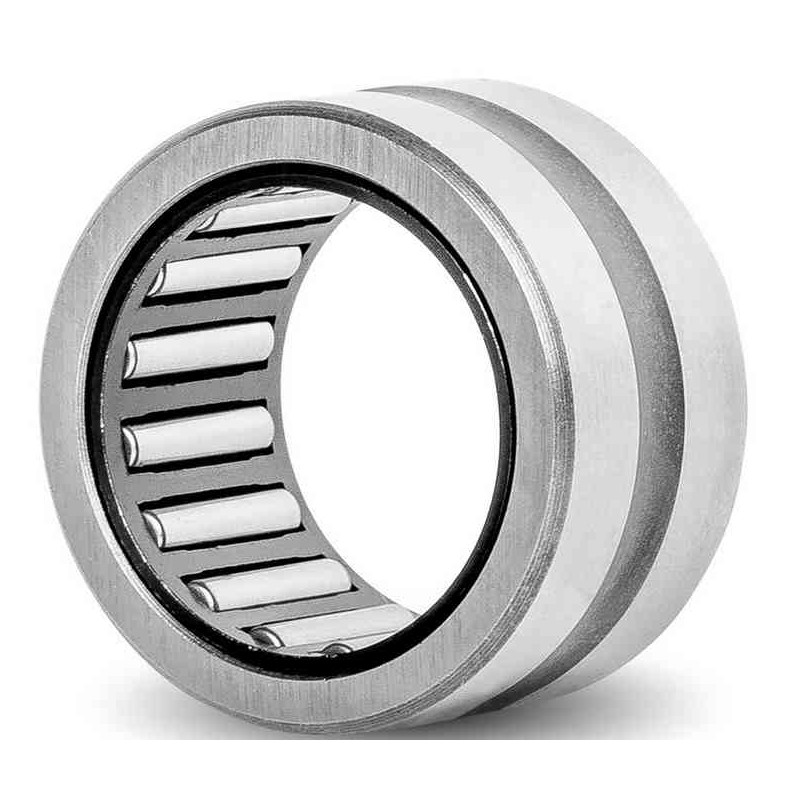

The MR 14 RICH needle roller bearing (22.248 x 34.925 x 25.4 mm) without an inner ring offers a compact, high-load solution with a steel cage, relying on a hardened shaft raceway.

RICH
MR14
€2.81
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

MR 14 RICH Needle Roller Bearing without Inner Ring - 22.248 x 34.925 x 25.4 mm

Technical Specifications:

  • Product Type: Needle Roller Bearing without Inner Ring
  • Model Designation: MR 14
  • Brand: RICH
  • Bore Diameter (ID): 22.248 mm
  • Outer Diameter (OD): 34.925 mm
  • Width: 25.4 mm
  • Cage Material: Steel
  • Weight: 0.082 kg
  • Country of Origin: China

The MR 14 RICH is a heavy-duty needle roller bearing without an inner ring, specifically designed to maximize radial load capacity within an extremely compact cross-section. This configuration is ideal for applications where the shaft raceway can be hardened and ground, eliminating the need for a separate inner ring and saving space. The bearing utilizes a durable steel cage to accurately guide the needle rollers, ensuring smooth and reliable operation even under high speeds and heavy loads. With primary dimensions of 22.248 mm bore, 34.925 mm outer diameter, and 25.4 mm width, the MR 14 RICH offers a powerful and efficient solution for transmissions and demanding industrial equipment.

Key Performance Advantages:

  • Space-Saving Design: High load capacity in a minimal radial cross-section.
  • High Radial Load: Excellent performance for heavy loads due to the robust roller complement.
  • Steel Cage: Provides precision guidance and stability for high-speed capabilities.
  • RICH Quality: A durable component optimized for reliable, long-term performance.

Data sheet

Inner Diameter
22.248
Outer Diameter
34.925
Width
25,4
Weight
0,082
