NKIS30 RICH 30x52x22 NKIS30 RICH
search
  • NKIS30 RICH 30x52x22 NKIS30 RICH

NKIS30 RICH 30x52x22

RICH
NKIS30
€4.77
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

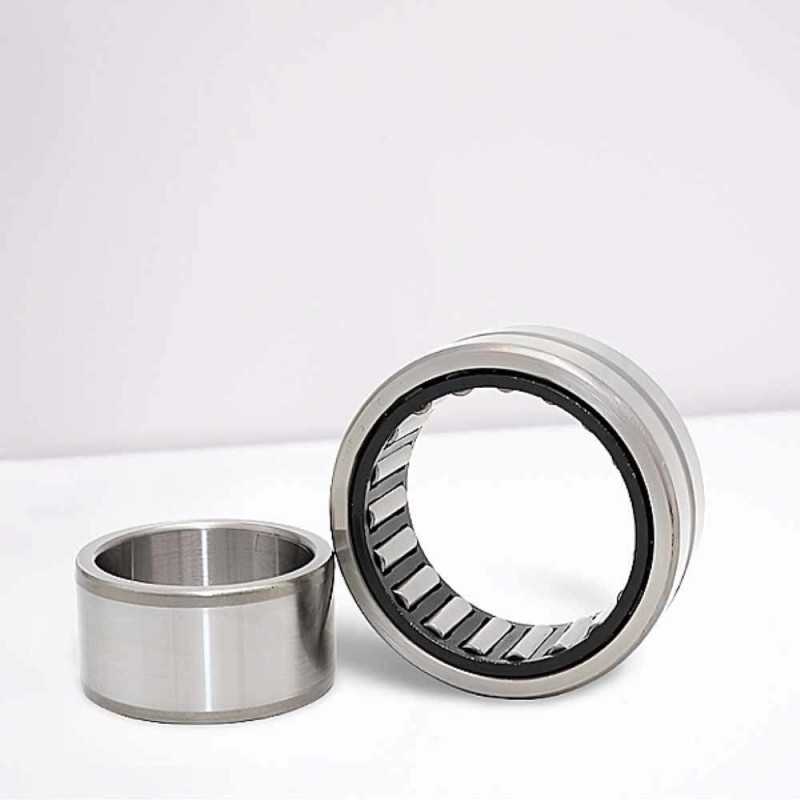

NKIS 30 RICH Needle Roller Bearing with Inner Ring - 30 x 52 x 22 mm

Technical Specifications:

  • Brand: RICH
  • Type: Needle Roller Bearing with Inner Ring
  • Model: NKIS 30
  • Dimensions: 30 x 52 x 22 mm
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 52 mm
  • Width (B): 22 mm
  • Weight: 0.2 kg
  • Cage Material: Steel
  • Country of Origin: China

The NKIS 30 RICH is a heavy-duty, single-row needle roller bearing with an inner ring, manufactured to deliver exceptional performance in applications with restricted radial space. With compact dimensions of 30 x 52 x 22 mm, this bearing from RICH is engineered for high load-carrying capacity and high stiffness.

This NKIS series bearing is a separable unit, meaning the precision-machined inner ring can be mounted independently of the outer ring and roller assembly. This design feature simplifies assembly, especially when the shaft itself cannot be used as a hardened and ground raceway. The bearing utilizes a robust steel cage to accurately guide the numerous long, slender needle rollers, ensuring proper load distribution and high running accuracy. The combination of a compact cross-section and high performance makes the NKIS 30 ideal for use in industrial gearboxes, machine tools, and heavy-duty transmission systems.

Key Performance Advantages:

  • High Radial Load Capacity: Due to the large number and small diameter of the needle rollers, the bearing provides superior capacity for static and dynamic radial loads in a compact envelope.
  • Integrated Inner Ring: The inner ring provides a precise, hardened raceway surface, ensuring consistent bearing performance even when the shaft quality is not optimized for a direct roller interface.
  • Excellent Rigidity and Stiffness: The robust design with machined rings maintains high dimensional stability and minimal elastic deformation under heavy operating conditions.
  • Space-Saving Profile: Offers a highly efficient solution for machinery where minimizing radial space and weight is critical.
  • Durable Steel Cage: The high-strength cage accurately separates and guides the rollers, contributing to reduced friction and extended service life.

Data sheet

Inner Diameter
30
Outer Diameter
52
Width
22
Weight
0.2
Roller Rows
Single Row
Clearance
CN (Normal)
