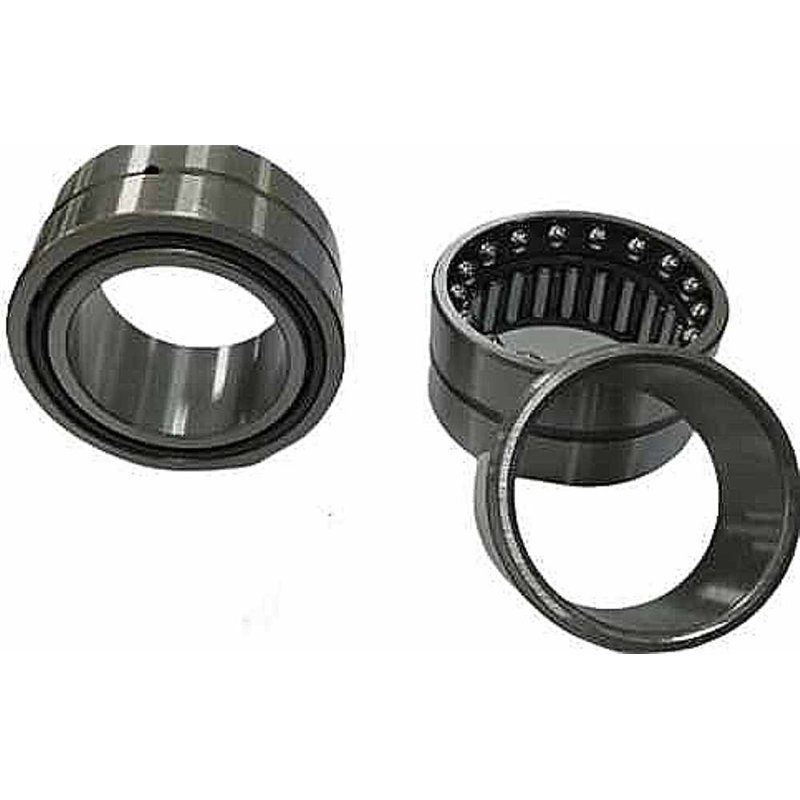

NKIA 5902 RICH Combined Angular Contact Ball and Needle Roller Bearing - 15 x 28 x 18 mm

Technical Specifications:

  • Brand: RICH
  • Type: Combined Angular Contact Ball and Needle Roller Bearing
  • Model: NKIA 5902
  • Dimensions: 15 x 28 x 18 mm
  • Inner Diameter (d): 15 mm
  • Outer Diameter (D): 28 mm
  • Width (B): 18 mm
  • Weight: 0.05 kg
  • Cage Material: Steel and Polyamide
  • Country of Origin: China

The NKIA 5902 RICH is a high-performance combined bearing that integrates two distinct bearing types into a single, compact unit: a needle roller bearing and an angular contact ball bearing. Manufactured by RICH, this unit features precise metric dimensions of 15 x 28 x 18 mm.

This innovative design is engineered for applications demanding multi-directional load support in tight spaces. The needle roller section is highly effective at managing heavy radial loads while providing excellent radial rigidity. Concurrently, the angular contact ball section handles high axial loads acting in a single direction, ensuring accurate and stable shaft guidance. The bearing incorporates both steel and polyamide cages, reflecting the specialized requirements of the internal components for optimized longevity and rotational stability. The NKIA 5902 RICH is an ideal solution for machine tools, compact gearboxes, and precision mechanical systems where space is limited but load capacity cannot be compromised.

Key Performance Advantages:

  • Integrated Dual Function: Combines needle roller and angular contact ball elements in one space-efficient unit.
  • High Radial and Axial Capacity: Optimized to handle heavy radial loads and high one-directional axial loads simultaneously.
  • Space-Saving Design: Minimizes the axial space required compared to using two separate bearings.
  • High Rigidity: Provides stable and accurate shaft guidance for precision applications.

Data sheet

Inner Diameter
15
Outer Diameter
28
Width
18
Weight
0,05
Cage
Steel Cage
