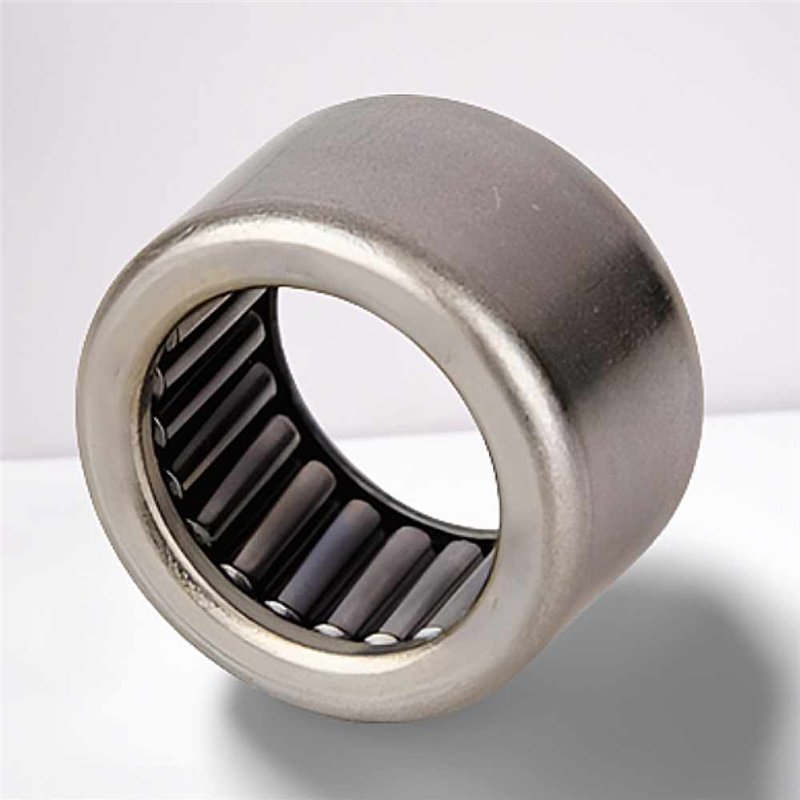

DL 1312 RICH Needle Roller Bearing without Inner Ring - 13 x 19 x 12 mm

Technical Specifications:

  • Brand: RICH
  • Type: Needle Roller Bearing without Inner Ring (Drawn Cup Type)
  • Model: DL 1312
  • Design: Full Complement (No Cage)
  • Dimensions: 13 x 19 x 12 mm
  • Bore Diameter (d): 13 mm
  • Outer Diameter (D): 19 mm
  • Width (B): 12 mm
  • Weight: 0.01 kg
  • Country of Origin: China

The DL 1312 RICH is a robust Needle Roller Bearing without Inner Ring featuring a full complement of needle rollers, which delivers the highest possible dynamic load rating for its compact cross-section. Manufactured by RICH, this bearing has precise metric dimensions of 13 x 19 x 12 mm.

This drawn cup bearing is engineered for maximum radial space efficiency, using the shaft directly as the inner raceway (which requires the shaft to be suitably hardened and ground). The full complement design (without a cage) maximizes the number of rolling elements, making it the perfect choice for low-speed, heavily loaded installations, such as in transmissions, universal joints, and small industrial drives where radial space is at a premium. The DL 1312 RICH offers superior reliability and load handling in a simple, compact unit.

Key Performance Advantages:

  • Maximum Load Capacity: Full complement design ensures superior radial load support.
  • Compact Design: Extremely small radial cross-section for maximum space saving.
  • Cost-Effective: Eliminates the need for a separate inner ring when the shaft is hardened.
  • High Rigidity: Excellent stiffness for reliable operation under high pressure.

Data sheet

Inner Diameter
13
Outer Diameter
19
Width
12
Weight
0,01
Clearance
CN (Normal)
Category
Needle Roller Bearing
