DL 1512 RICH 15x21x12 DL1512 RICH
search
  • DL 1512 RICH 15x21x12 DL1512 RICH

DL 1512 RICH 15x21x12

RICH
DL1512
€3.86
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

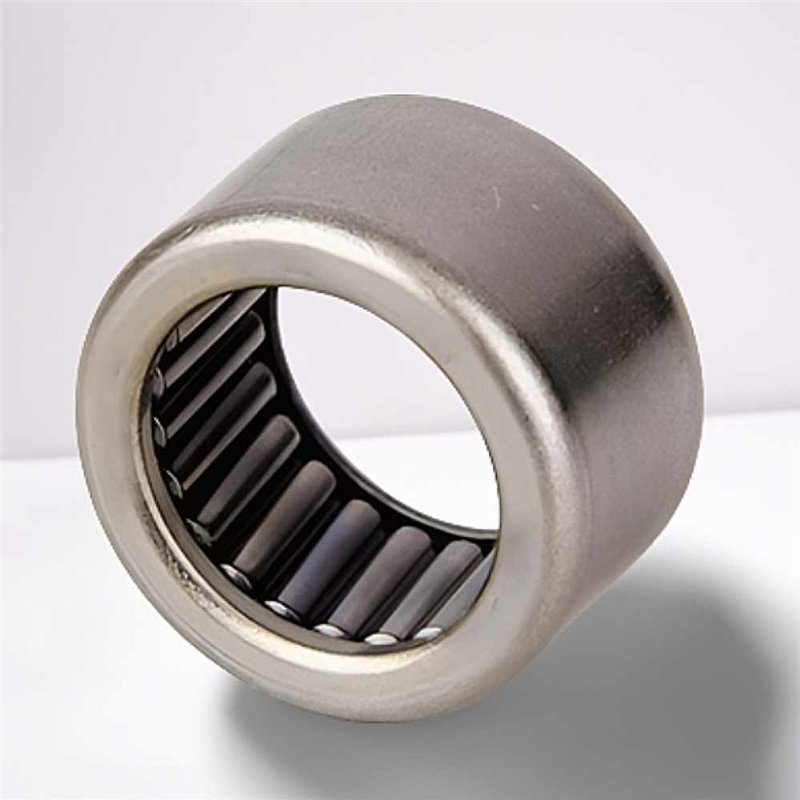

DL 1512 RICH Needle Roller Bearing without Inner Ring - 15 x 21 x 12 mm

Technical Specifications:

  • Brand: RICH
  • Type: Needle Roller Bearing without Inner Ring (Drawn Cup Type)
  • Model: DL 1512
  • Design: Full Complement (No Cage)
  • Dimensions: 15 x 21 x 12 mm
  • Bore Diameter (d): 15 mm
  • Outer Diameter (D): 21 mm
  • Width (B): 12 mm
  • Weight: 0.012 kg
  • Country of Origin: China

The DL 1512 RICH is a robust Needle Roller Bearing without Inner Ring featuring a full complement of needle rollers, ensuring the highest possible dynamic load rating for its exceptionally small cross-section. Manufactured by RICH, this bearing has precise metric dimensions of 15 x 21 x 12 mm.

Designed for space-saving installations, this drawn cup bearing uses the shaft directly as the inner raceway, which must be suitably hardened and ground. The full complement design (no cage) allows for the maximum number of rolling elements, making it ideal for low-speed, heavily loaded applications where minimal radial space is available, such as transmissions, small gear pumps, and agricultural equipment. The DL 1512 RICH offers simplicity and reliability in demanding conditions.

Key Performance Advantages:

  • Maximum Load Capacity: Full complement design utilizes the entire bearing space for needle rollers.
  • Compact Design: Extremely small radial cross-section for maximum space saving.
  • Cost-Effective: Eliminates the need for a separate inner ring when the shaft is hardened.
  • High Rigidity: Excellent stiffness and low friction for reliable operation.

Data sheet

Inner Diameter
15
Outer Diameter
21
Width
12
Weight
0,012
Category
Needle Roller Bearing
