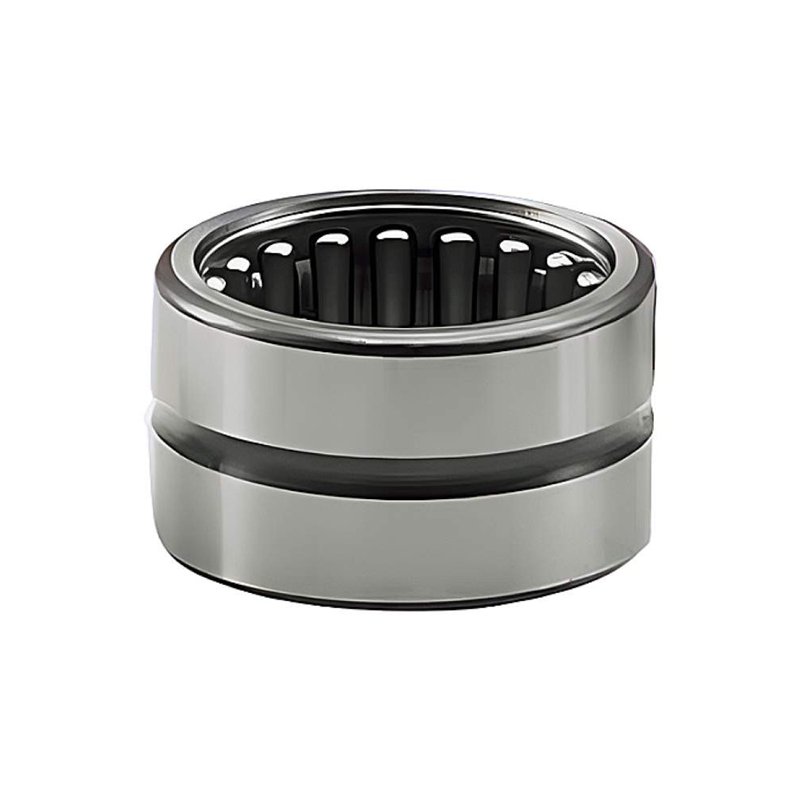

Needle Roller Bearing without Inner Ring NK12/12 RICH - 12 x 19 x 12 mm with Steel Cage

The NK12/12 RICH is a compact needle roller bearing designed without an inner ring, intended for applications where the shaft itself serves as the inner raceway. This design allows for a very space-efficient bearing arrangement. Despite its small size, it is engineered to support high radial loads, with the needle rollers providing a large contact area for effective load distribution. It features a steel cage to ensure precise roller guidance and spacing, promoting smooth and reliable operation. The dimensions of this bearing are 12 mm inner diameter (requiring a precision-ground shaft of this diameter as the inner raceway), 19 mm outer diameter, and 12 mm width, with a very light approximate weight of 0.009 kg. Manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller Bearing without Inner Ring
  • Dimensions: 12 mm inner diameter (shaft as inner raceway) x 19 mm outer diameter x 12 mm width
  • Weight: 0.009 kg
  • Cage Material: Steel
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • High Radial Load Capacity for its Size
  • Very Compact Design (utilizes shaft as inner raceway)
  • Smooth Operation
  • Robust Construction
  • Lightweight

Data sheet

Inner Diameter
12
Outer Diameter
19
Width
12
Weight
0,09
Roller Rows
Single Row
Category
Needle Roller Bearing without Inner Ring
