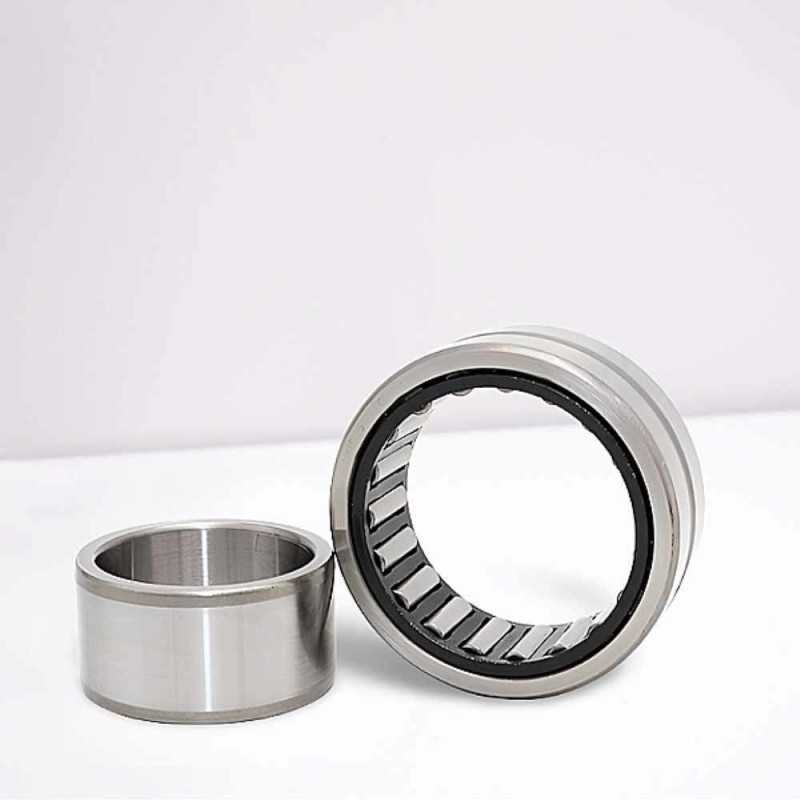

NKIS 40 RICH Needle Roller Bearing with Inner Ring - 40 x 65 x 22 mm

Technical Specifications:

  • Brand: RICH
  • Type: Needle Roller Bearing with Inner Ring
  • Model: NKIS 40
  • Dimensions: 40 x 65 x 22 mm
  • Inner Diameter (d): 40 mm
  • Outer Diameter (D): 65 mm
  • Width (B): 22 mm
  • Weight: 0.001 kg
  • Cage Material: Steel
  • Country of Origin: China

The NKIS 40 RICH is a precision-machined, single-row needle roller bearing with an inner ring, expertly designed to handle very high radial loads in applications with limited radial installation space. Bearing dimensions are 40 x 65 x 22 mm.

This heavy-duty bearing from RICH features separable components, including a robust outer ring with integral guiding flanges and a removable inner ring. The inner ring is essential for applications where the shaft cannot be hardened and ground to serve as a raceway, providing a high-quality rolling surface for the needle rollers. The long, slender cylindrical rollers are guided by a high-strength steel cage, ensuring optimal alignment, reduced friction, and excellent load distribution, which results in high operational stiffness and accuracy. The NKIS 40 is a versatile component widely used in high-load industrial machinery, construction equipment, and heavy-duty transmissions.

Key Performance Advantages:

  • Exceptional Radial Load Capacity: Achieves high performance despite its compact, low cross-sectional height, thanks to the large number of needle rollers.
  • Integrated Inner Ring: Allows the bearing to be used on shafts that do not meet the hardening and finishing requirements of a direct raceway.
  • Separable Design: The rings and the needle roller/cage assembly can be mounted independently, facilitating easier installation and maintenance.
  • High Stiffness and Precision: Machined rings provide structural rigidity and operational accuracy under heavy loads.
  • Durable Steel Cage: The robust steel cage maintains roller alignment and is suitable for demanding operating conditions.

Data sheet

Inner Diameter
40
Outer Diameter
65
Width
22
Weight
0,01
Clearance
CN (Normal)
Category
Needle Roller Bearing
