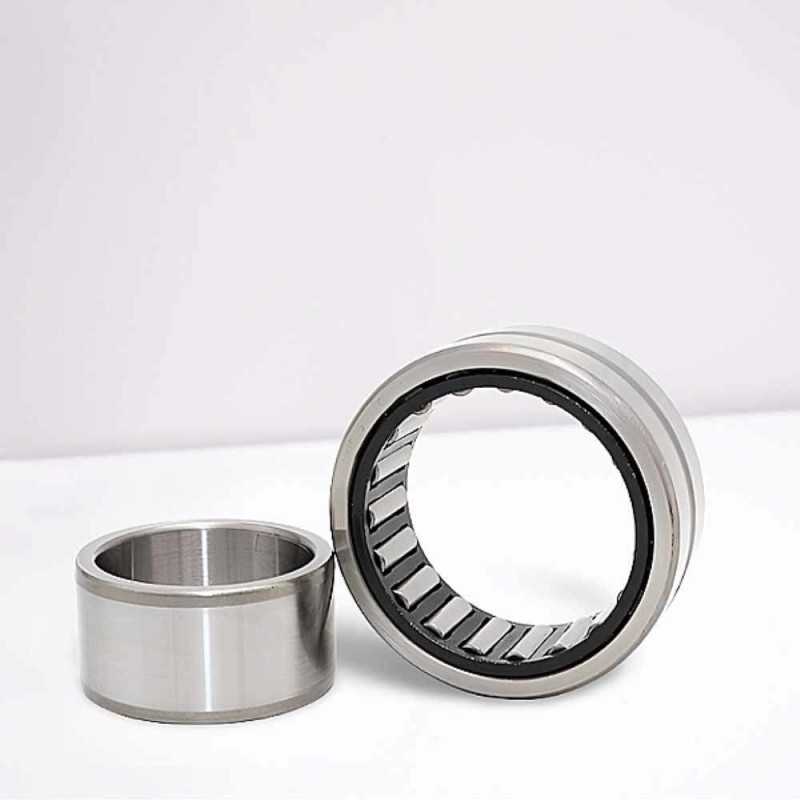

NKIS 35 RICH Needle Roller Bearing with Inner Ring - 35 x 58 x 22 mm

Technical Specifications:

  • Brand: RICH
  • Type: Needle Roller Bearing with Inner Ring
  • Model: NKIS 35
  • Dimensions: 35 x 58 x 22 mm
  • Inner Diameter (d): 35 mm
  • Outer Diameter (D): 58 mm
  • Width (B): 22 mm
  • Weight: 0.22 kg
  • Cage Material: Steel
  • Country of Origin: China

The NKIS 35 RICH is a robust needle roller bearing with an inner ring, designed to provide an exceptionally high radial load capacity within a compact, low cross-sectional height. The presence of the precision-machined inner ring makes this bearing ideal for use on shafts that cannot be hardened and ground to serve as a direct raceway. The single row of long, slender cylindrical rollers, accurately guided by a high-strength steel cage, ensures uniform load distribution and contributes to the bearing's stiffness. With dimensions of 35 x 58 x 22 mm, the NKIS 35 RICH is a separable design, which simplifies the installation process.

Key Performance Advantages:

  • High Radial Load Capacity: Incorporates a large number of needle rollers for superior support of heavy radial loads.
  • Low Cross-Sectional Height: Achieves a powerful solution while saving radial space compared to conventional roller bearings.
  • Integrated Inner Ring: Allows for the use of the bearing on unhardened or less precisely finished shafts.
  • Separable Components: The design simplifies mounting and dismounting of the bearing components.
  • High Stiffness: Machined rings and precise geometry ensure high stiffness for rotational accuracy.

Data sheet

Inner Diameter
35
Outer Diameter
58
Width
22
Weight
0,22
Clearance
CN (Normal)
Category
Needle Roller Bearing
