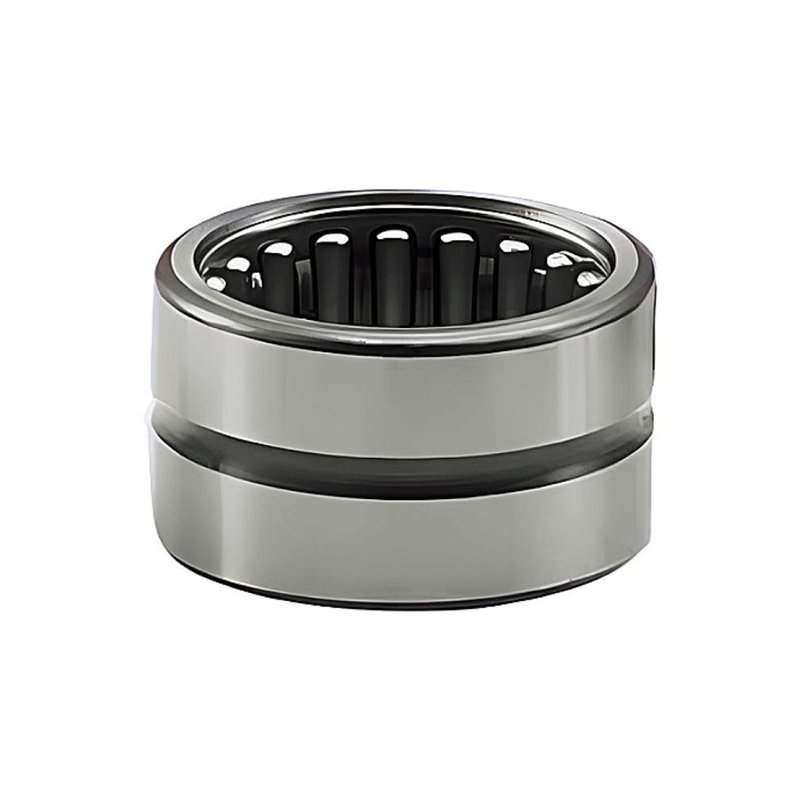

Needle Roller Bearing without Inner Ring NK100/26 RICH - 100 x 120 x 26 mm with Steel Cage

The NK100/26 RICH is a needle roller bearing designed without an inner ring, intended for applications where the shaft serves as the inner raceway. This design allows for a more compact bearing arrangement and can be a cost-effective solution. Engineered to support high radial loads, the bearing utilizes needle rollers, providing a large contact area for efficient load distribution. It features a steel cage to ensure precise roller guidance and spacing, promoting smooth and reliable operation. The dimensions of this bearing are 100 mm inner diameter (requiring a precision-ground shaft of this diameter as the inner raceway), 120 mm outer diameter, and 26 mm width, with an approximate weight of 0.55 kg. Manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller Bearing without Inner Ring
  • Dimensions: 100 mm inner diameter (shaft as inner raceway) x 120 mm outer diameter x 26 mm width
  • Weight: 0.55 kg
  • Cage Material: Steel
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • High Radial Load Capacity
  • Compact Design (utilizes shaft as inner raceway)
  • Smooth Operation
  • Robust Construction
  • Economical Solution (in suitable applications)

Data sheet

Inner Diameter
100
Outer Diameter
120
Width
26
Weight
0,55
Roller Rows
Single Row
Category
Needle Roller Bearing without Inner Ring
