BA 188 RICH 28,575x34,9x12,7 BA188 RICH
search
  • BA 188 RICH 28,575x34,9x12,7 BA188 RICH

BA 188 RICH 28,575x34,9x12,7

RICH
BA188
€1.52
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

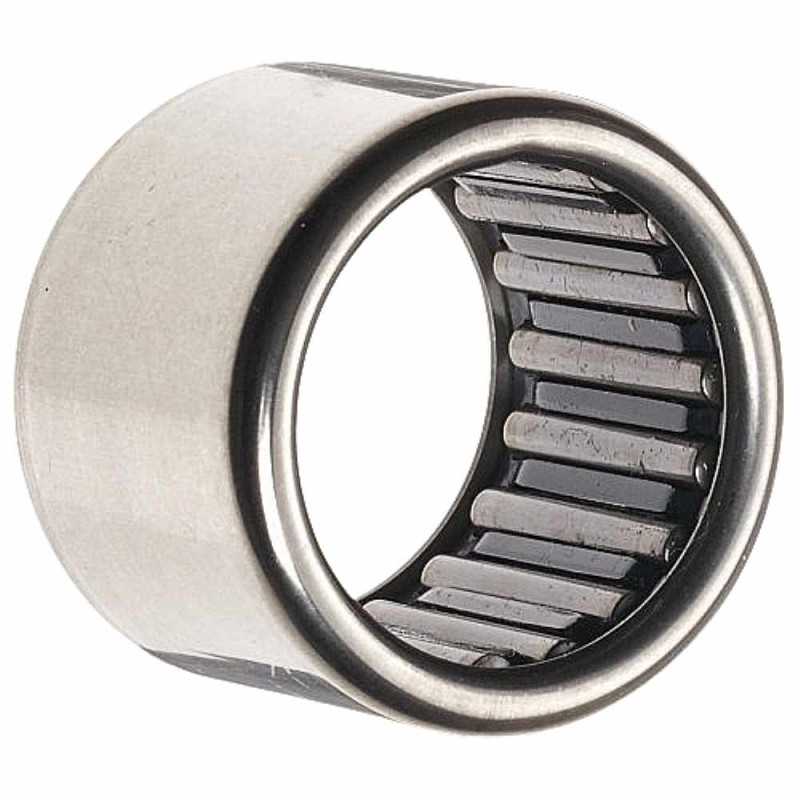

BA 188 RICH Needle Roller Bearing without Inner Ring - 28.575 x 34.925 x 12.7 mm

Technical Specifications:

  • Product Type: Needle Roller Bearing without Inner Ring
  • Model Designation: BA 188
  • Brand: RICH
  • Bore Diameter (ID): 28.575 mm
  • Outer Diameter (OD): 34.925 mm
  • Width: 12.7 mm
  • Cage Material: Steel
  • Weight: 0.019 kg
  • Country of Origin: China

The BA 188 RICH is a robust needle roller bearing without an inner ring, designed to provide high radial load capacity within a minimal cross-section. This space-saving design is ideal for applications where the shaft raceway can be hardened and ground, eliminating the need for a separate inner ring. The bearing features precision-drawn cups and is equipped with a durable steel cage, which accurately guides the needle rollers to ensure smooth and reliable operation at high speeds. With dimensions of 28.575 mm bore, 34.925 mm outer diameter, and 12.7 mm width, the BA 188 RICH offers a compact yet powerful solution for numerous industrial and automotive transmissions.

Key Performance Advantages:

  • Space-Saving Design: High load capacity in a small radial cross-section.
  • High Radial Load: Excellent performance for heavy loads despite compact size.
  • Steel Cage: Provides precision guidance and high-speed capability for the rollers.
  • RICH Quality: A reliable component optimized for systems with hardened shaft raceways.

Data sheet

Inner Diameter
28,575
Outer Diameter
34,9
Width
12,7
Category
Needle Roller Bearing
