  • SB206-20 RICH 31,75x62x30 SB206-20 RICH

SB206-20 RICH 31,75x62x30

RICH
SB206-20
€10.99
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

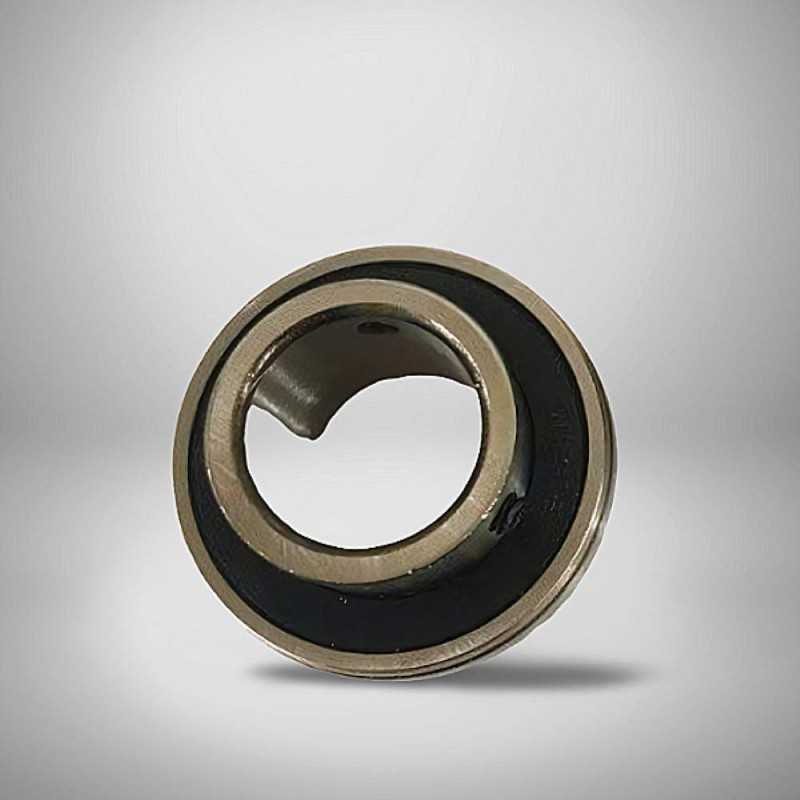

SB206-20 RICH Deep Groove Ball Bearing - 31.75 x 62 x 30 mm

The SB206-20 RICH is a high-quality deep groove ball bearing, meticulously manufactured by RICH in China. This versatile bearing is designed for a broad range of industrial applications, providing reliable performance and efficient rotation. Its precise dimensions of 31.75 mm bore, 62 mm outer diameter, and 30 mm width ensure optimal fitting and operation.

This RICH deep groove ball bearing features an inner ring width (B) of 30 mm and an outer ring width (C) of 16 mm. The extended inner ring has a distance from the face to the grub screw (S1) of 22 mm, and a distance from the opposite face to the grub screw (S2) of 6 mm. The minimum chamfer dimension (r min.) is 1 mm. It is equipped with a 1/4-28UNF thread (G), facilitating secure mounting. The design provides excellent radial and moderate axial load capacity, coupled with the ability to operate at high speeds.

Weighing 0.27 kg, this robust yet efficient component from RICH ensures consistent and durable operation. It is ideally suited for applications requiring reliable rotation, such as agricultural machinery, conveying systems, and general industrial equipment, where precise dimensions and strong performance are essential.

Key Specifications:

  • Type: Deep Groove Ball Bearing
  • Brand: RICH
  • Model: SB206-20 RICH
  • Dimensions: 31.75 mm bore x 62 mm outer diameter x 30 mm width
  • Bore Diameter (d): 31.75 mm
  • Outer Diameter (D): 62 mm
  • Width (B): 30 mm
  • Outer Ring Width (C): 16 mm
  • Distance S1: 22 mm
  • Distance S2: 6 mm
  • Minimum Chamfer (r min.): 1 mm
  • Thread (G): 1/4-28UNF
  • Weight: 0.27 kg
  • Country of Origin: China

Key Advantages:

  • Versatile Performance: Suitable for a wide array of industrial applications, offering reliable rotation and load support.
  • Optimal Dimensions: Precisely engineered to 31.75 x 62 x 30 mm for accurate fitting.
  • Secure Mounting: Features a 1/4-28UNF thread for robust attachment.
  • Durable Construction: Ensures long-lasting performance and high operational reliability.
  • RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance you can count on.

Data sheet

Inner Diameter
31,75
Outer Diameter
62
Width
30
