BA220-6SA RICH 220x276x26 BA220-6SA RICH
zoom_out_map
BA220-6SA RICH 220x276x26 BA220-6SA RICH

BA220-6SA RICH 220x276x26

Type: Single Row Angular-Contact Ball Bearing
Model: BA220-6SA RICH
Dimensions: 220 x 276 x 26 mm
Features: Polyamide Cage, Open Design, Precision Engineering
Brand: RICH
Origin: China
RICH
BA220-6SA
€78.23
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

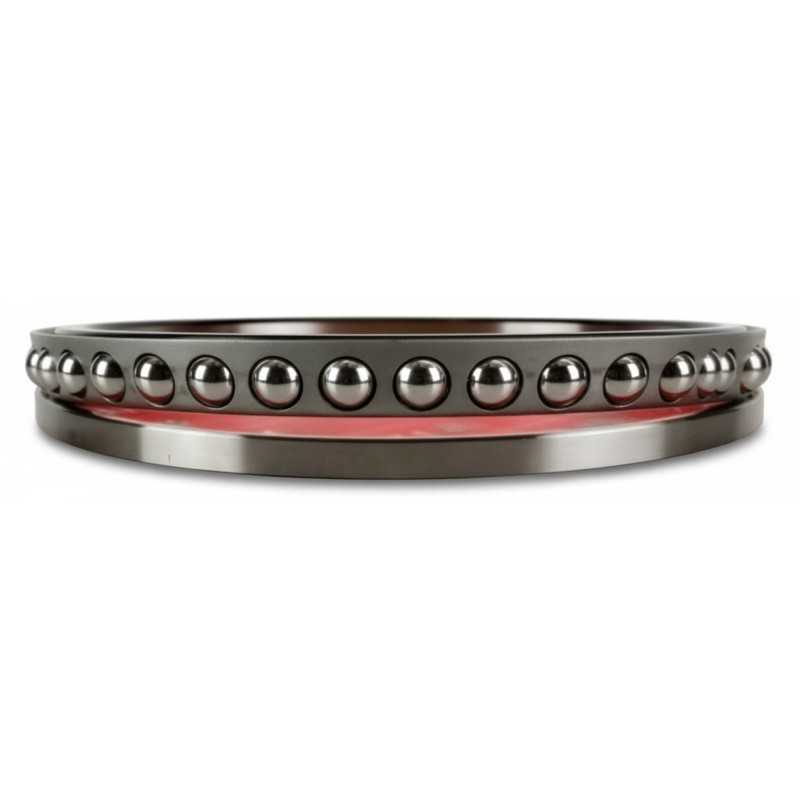

BA220-6SA RICH – Single Row Angular-Contact Ball Bearing – 220 x 276 x 26 mm

Technical Specifications:

  • Type: Single row angular-contact ball bearing
  • Brand: RICH
  • Model Designation: BA220-6SA
  • Inner Diameter (d): 220 mm
  • Outer Diameter (D): 276 mm
  • Total Width (B): 26 mm
  • Inner Ring Width: 17.5 mm
  • Outer Ring Width (C): 15.5 mm
  • Sealing: Open (None)
  • Cage Material: Polyamide
  • Weight: 2.752 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Single-row angular contact design featuring a specific contact angle for the transmission of combined radial and axial loads.
  • Cage Design: Equipped with a high-performance polyamide cage, offering reduced friction, lower noise levels, and improved performance at higher speeds compared to standard steel cages.
  • Load Capability: Specifically engineered to accommodate axial loads acting in one direction; typically used in pairs or sets for bidirectional axial support.
  • Mechanical Interface: Large-scale 220 x 276 x 26 mm dimensional format manufactured according to industrial precision tolerances for heavy-duty rotary applications.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
220
Outer Diameter
276
Width
26
Cage
Polyamide Cage
Category
Single Row Angular-Contact Ball Bearing
