22-L-050 RICH Pulley 65,94x19 PD22L050 RICH
search
  • 22-L-050 RICH Pulley 65,94x19 PD22L050 RICH

22-L-050 RICH Pulley 65,94x19

RICH
PD22L050
€3.37
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

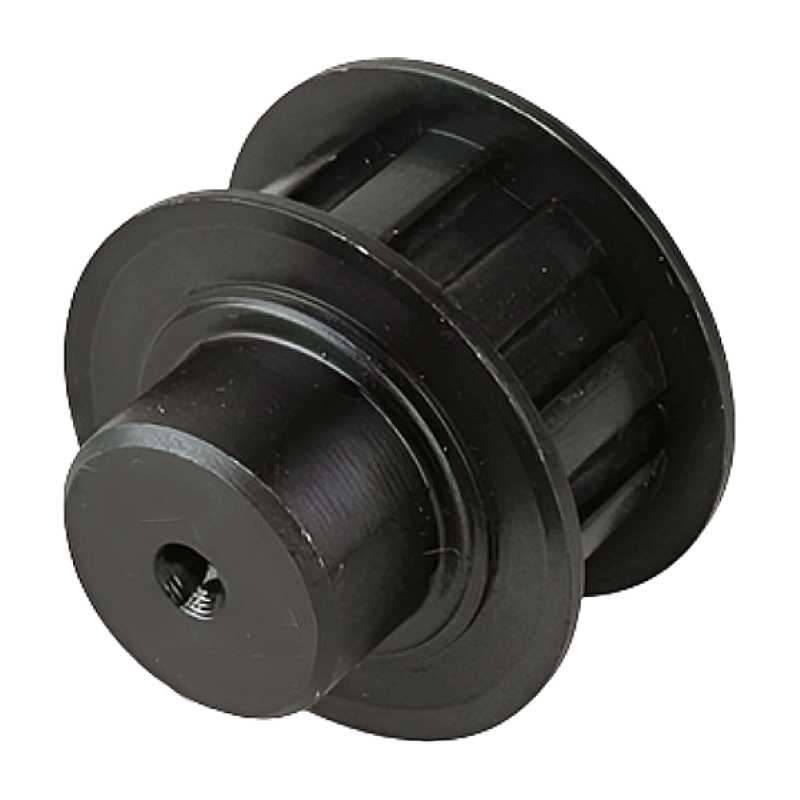

22-L-050 RICH Pulley Diameter 65.94 mm, Length 19 mm

Technical Specifications

  • Catalog Code: 22-L-050
  • Brand: RICH
  • Type: Pulley with Flanges
  • Profile: L
  • Belt Width (bo): 12.7 mm (1/2")
  • Material: Carbon Steel C45 / 1.0503 / AISI1045
  • Outer Diameter (S): 65.94 mm
  • Length (W): 19 mm
  • E [mm]: 75
  • H [mm]: 50
  • Y [mm]: 30
  • Z [mm]: 11
  • R [mm]: 66.7
  • Number of Teeth: 22
  • Execution: 1
  • Mounting: With Hub, Pulley with Center Holes
  • Features: Pulley with Flanges
  • Weight: 0.66 kg
  • Country of Origin: China

Key Features

  • Designed for belts with width 12.7 mm (1/2").
  • Compact pulley with hub and flanges for secure belt guidance.
  • Center holes for precise mounting.
  • Made of durable carbon steel C45 for strength and reliability.

Data sheet

Outer Diameter
65,94
Width
19
