  • 063SPZ3 RICH V-Belt Pulley 63x40 PBT063SPZ3 RICH

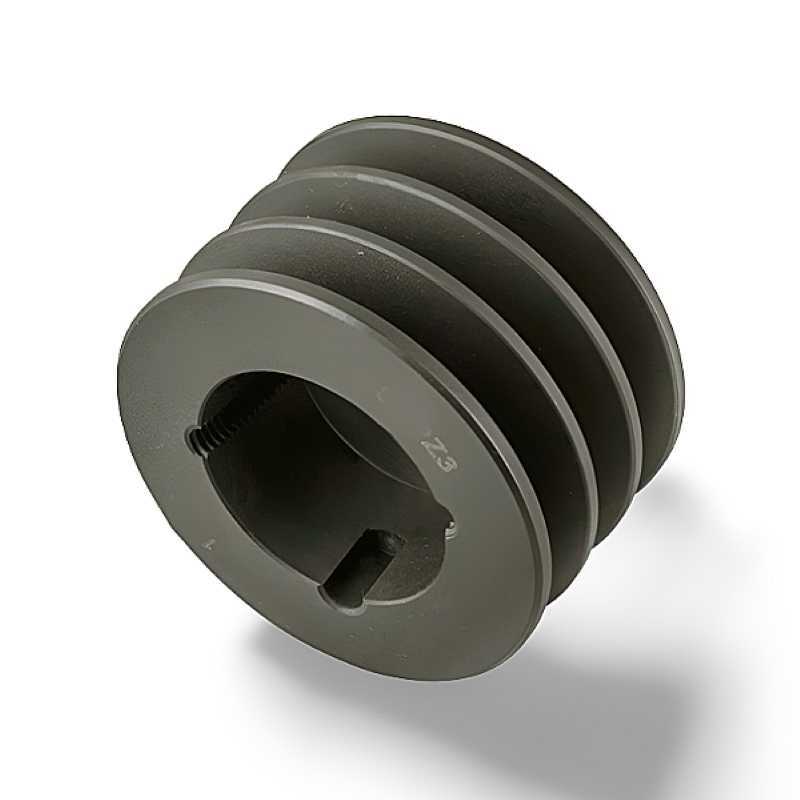

063SPZ3 RICH V-Belt Pulley 63x40

RICH V-Belt Pulley 063SPZ3, taper bushing mounting, diameter 63 mm, width 40 mm, 3 grooves.

RICH
PBT063SPZ3
€3.02
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

063SPZ3 RICH V-Belt Pulley Diameter 63 mm, Width 40 mm

Technical Specifications

  • Catalog Code: 063SPZ3
  • Brand: RICH
  • Type: V-Belt Pulley
  • Profile: SPZ
  • Number of Grooves: 3
  • Material: Grey Cast Iron
  • Outer Diameter (dw): 63 mm
  • Width (W): 40 mm
  • L [mm]: 22
  • Z [mm]: 18
  • U [mm]: 38
  • Execution: 10
  • Mounting: Taper Bushing (Taper Lock 1108)
  • Features: No Hub, Pulley with Flanges, Pulley with Center Holes
  • Weight: 0.41 kg
  • Country of Origin: China

Key Features

  • Designed for SPZ profile belts with 3 grooves.
  • Taper bushing mounting for secure and easy installation.
  • Made of durable grey cast iron for strength and reliability.
  • Compact design with flanges and center holes for precise alignment.

Data sheet

Outer Diameter
63
Width
40
