LR5203 ZZ RICH 17x47x17,5

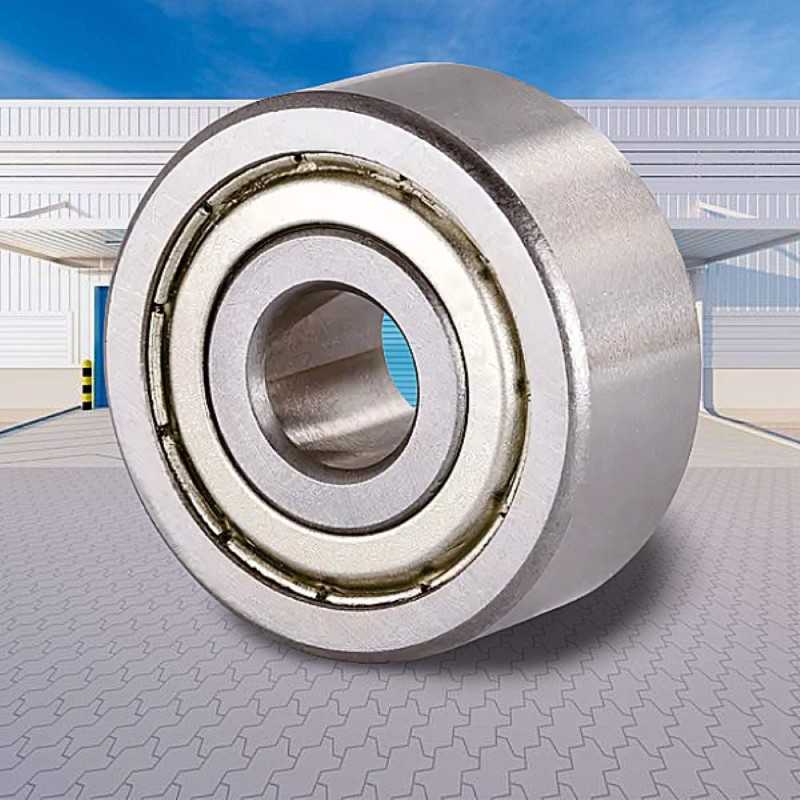

LR5203 ZZ RICH – Track Roller – 17 x 47 x 17.5 mm

Technical Specifications:

• Type: Track roller
• Brand: RICH
• Model Designation: LR5203 ZZ
• Inner Diameter (d): 17 mm
• Outer Diameter (D): 47 mm
• Width (B): 17.5 mm
• Outer Ring Profile: Crowned / Rounded outer ring
• Sealing: Double-sided non-contact shield (ZZ)
• Weight: 0.16 kg
• Country of Origin: China

Construction Details:

• Components: Thick-walled crowned outer ring, inner ring, cage assembly, precision rolling elements, and double-sided non-contact metal shields.
• Configuration: Yoke-type track roller designed based on a double row configuration layout, engineered with a rounded outer profile to prevent edge stress concentrations and compensate for slight industrial running misalignments.
• Rolling Elements: Ball complement.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
