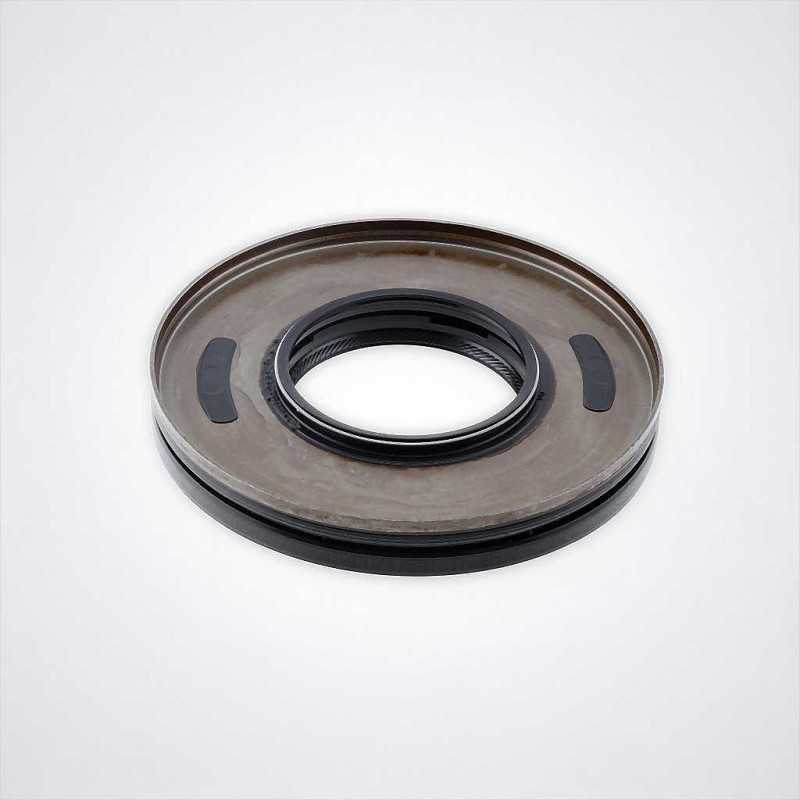

Oil Seal RICH 50x105x7/14,5 ACM 01036150B RICH
zoom_out_map
Oil Seal RICH 50x105x7/14,5 ACM 01036150B RICH

Oil Seal RICH 50x105x7/14,5 ACM

Type: Oil Seal / Shaft Seal / Sealing Ring
Model: RICH 50 x 105 x 7/14.5 ACM
Material: ACM Polyacrylate Rubber (-30÷150°C)
Brand: RICH
Origin: China
RICH
01036150B
€9.24
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 50 × 105 × 7/14.5 ACM

OE References:

  • AUDI: 0AW331261A
  • VW: 0AW331261A
  • CORTECO: 01036150B

Technical Specifications:

  • Brand: RICH
  • Type: Oil seal / Shaft seal / Sealing ring
  • Inner Diameter (d): 50 mm
  • Outer Diameter (D): 105 mm
  • Base Height (h1): 7 mm
  • Total Height (h2): 14.5 mm
  • Material: ACM (Polyacrylate Rubber)
  • Temperature Range: -30°C to +150°C
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Elastomeric sealing element based on ACM.
  • Thermal Classification: Heat resistance and oil stability aligned with ACM material properties.
  • Profile Geometry: Radial shaft sealing structure with extended height profile.
  • Structural Layout: Precision-engineered sealing lip for optimized fluid retention in automotive transmission applications.
  • Dimensional Format: 50 × 105 × 7/14.5 mm configuration.

Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
50
Outer Diameter
105
Width
7
Weight
0,153
Compatible with Corteco
01036150B
