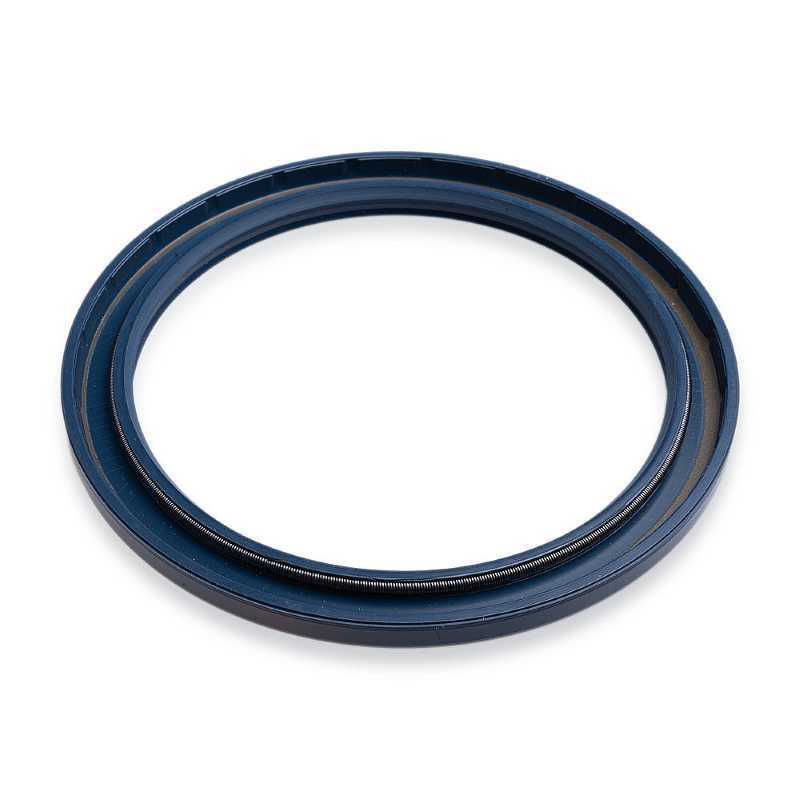

Oil Seal RICH 20 x 40 x 7/7.5 NBR
Technical Specifications:
- Catalog Code: 20 x 40 x 7/7.5 NBR RICH
- Brand: RICH
- Type: Oil Seal / Shaft Seal / Sealing Ring (Double lip seal)
- Inner Diameter (d): 20 mm
- Outer Diameter (D): 40 mm
- Height 1 (h1): 7 mm
- Height 2 (h2): 7.5 mm
- Material: NBR nitrile rubber (-30÷100°C)
- Working Pressure: 10 bar
- Country of Origin: China
Key Performance Advantages:
- High-Grade NBR Resilience: Specifically formulated with NBR nitrile rubber (-30÷100°C) for excellent resistance to mineral oils, hydraulic fluids, and grease, maintaining elasticity and structural integrity across diverse temperature ranges.
- Pressure Stability: Engineered to operate effectively under working pressures of up to 10 bar, ensuring a consistent leak-proof barrier in pressurized hydraulic and mechanical systems.
- Double Lip Protection: Features a primary spring-loaded sealing lip for maximum oil retention and a secondary auxiliary dust lip that acts as a robust shield against external contaminants.
- Efficient Lubricant Retention: The spring-loaded sealing lip ensures consistent radial pressure on the 20 mm shaft, effectively preventing oil leaks even under continuous mechanical rotation.
- Precision Housing Fit: Designed for a stable interference fit within 40 mm housings, compensating for thermal fluctuations and preventing seal migration.
Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and references are used for identification and do not imply affiliation with other manufacturers.
