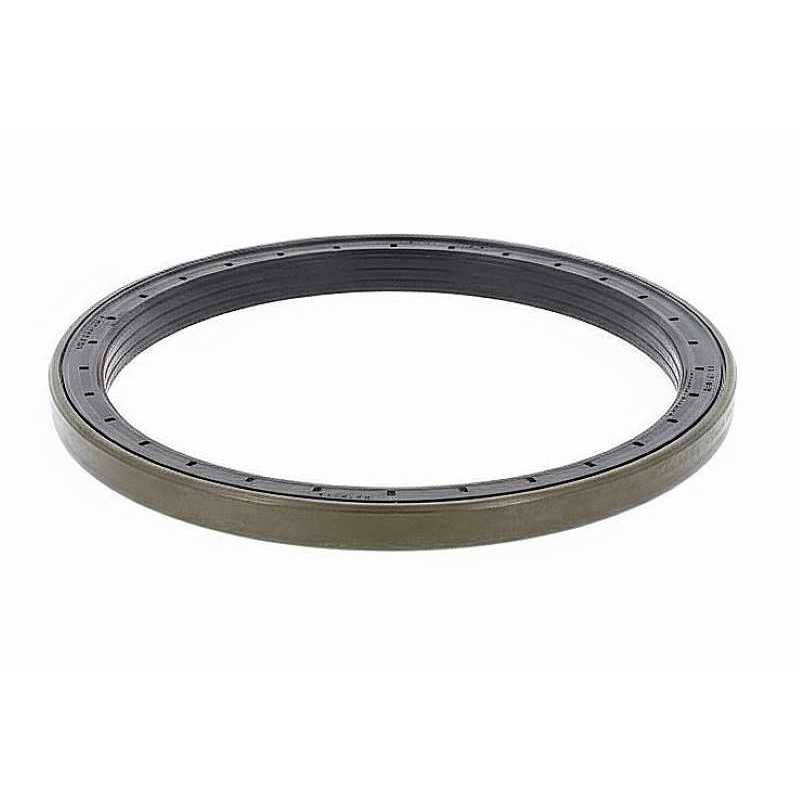

Oil Seal RICH 125 x 160 x 15.5/20 FPM KASSETTE
OE References:
- DAF: 0292766
- SCANIA: 350984, 3509841
Technical Specifications:
- Brand: RICH
- Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
- Inner Diameter (d): 125 mm
- Outer Diameter (D): 160 mm
- Base Height (h1): 15.5 mm
- Total Height (h2): 20 mm
- Material: FPM Fluoroelastomer
- Temperature Range: -20°C to +200°C
- Country of Origin: China
Performance Characteristics:
- KASSETTE Unitized System: The sealing lips operate on an internal, factory-lubricated wear track, isolating the 125 mm shaft from rotational friction.
- FPM Thermal Endurance: The Fluoroelastomer compound maintains structural integrity up to 200°C, a critical requirement for heavy-duty Scania and DAF axles under continuous load.
- Elimination of Shaft Wear: By providing its own running surface, this KASSETTE seal prevents the formation of grooves on the axle journal, removing the need for shaft resurfacing or hardening.
- Advanced Labyrinth Protection: Specifically designed with multiple protective lips to block road salt, water ingress, and fine particulate matter in long-haul transport environments.
- Dual-Height Structural Stability: The 15.5/20 mm profile ensures a reinforced seat within the 160 mm housing, preventing seal displacement during high-torque operations.
Transparency Note: This product is manufactured under the RICH brand. All OE references (DAF 0292766, Scania 350984) are provided exclusively for identification and compatibility purposes and do not imply association with the original equipment manufacturers.
