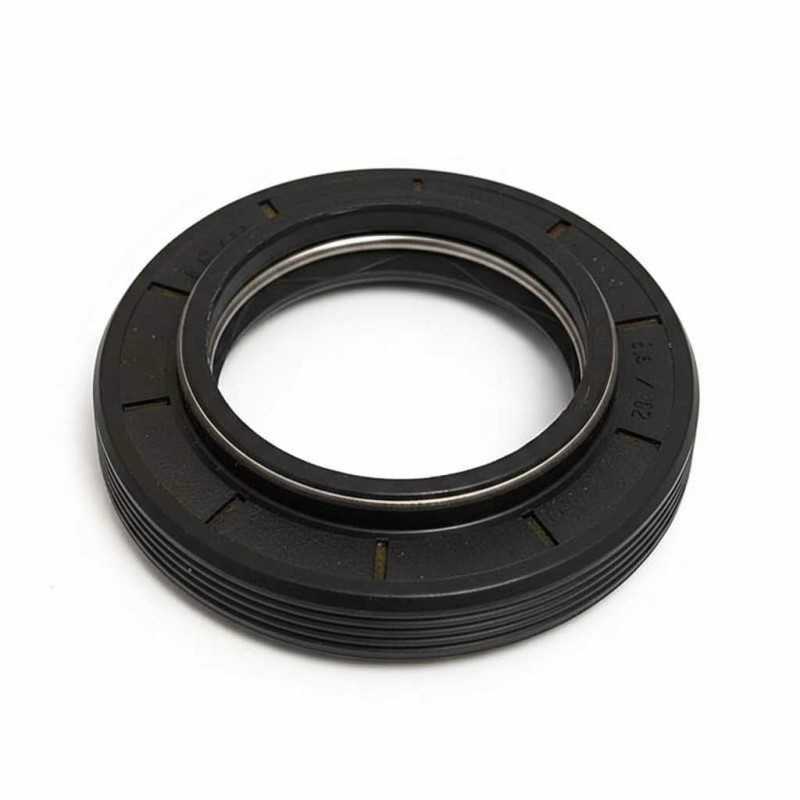

Oil Seal RICH 31x48x8,4 ACM 49358040 RICH
zoom_out_map
Oil Seal RICH 31x48x8,4 ACM 49358040 RICH

Oil Seal RICH 31x48x8,4 ACM

Type: Oil Seal / Shaft Seal / Sealing Ring (Alternating Twist)
Model: RICH 31 x 48 x 8.4 ACM
Material: ACM Polyacrylate Rubber (-30÷150°C)
Brand: RICH
Origin: China
RICH
49358040

Volume discounts

Quantity Unit price
10 €3.38
20 €3.22
50 €3.05
100 €2.89
€3.73
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 31 × 48 × 8.4 ACM

OE References:

  • AUDI / SEAT / VW: 0A6409189C, 0A6409189F
  • CORTECO: 49358040

Technical Specifications:

  • Brand: RICH
  • Type: Oil seal / Shaft seal / Sealing ring
  • Swirl Type: Alternating Twist
  • Inner Diameter (d): 31 mm
  • Outer Diameter (D): 48 mm
  • Height (h): 8.4 mm
  • Material: ACM (Polyacrylate Rubber)
  • Temperature Range: -30°C to +150°C
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Elastomeric sealing element based on ACM.
  • Thermal Classification: Operating range consistent with ACM material specifications.
  • Profile Geometry: Radial shaft sealing structure with alternating hydrodynamic twist.
  • Structural Layout: Molded sealing lip with integrated swirl profile designed for transfer case applications.
  • Dimensional Format: 31 × 48 × 8.4 mm configuration.

Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
31
Outer Diameter
48
Width
8,4
Weight
0,014
Compatible with Corteco
49358040
