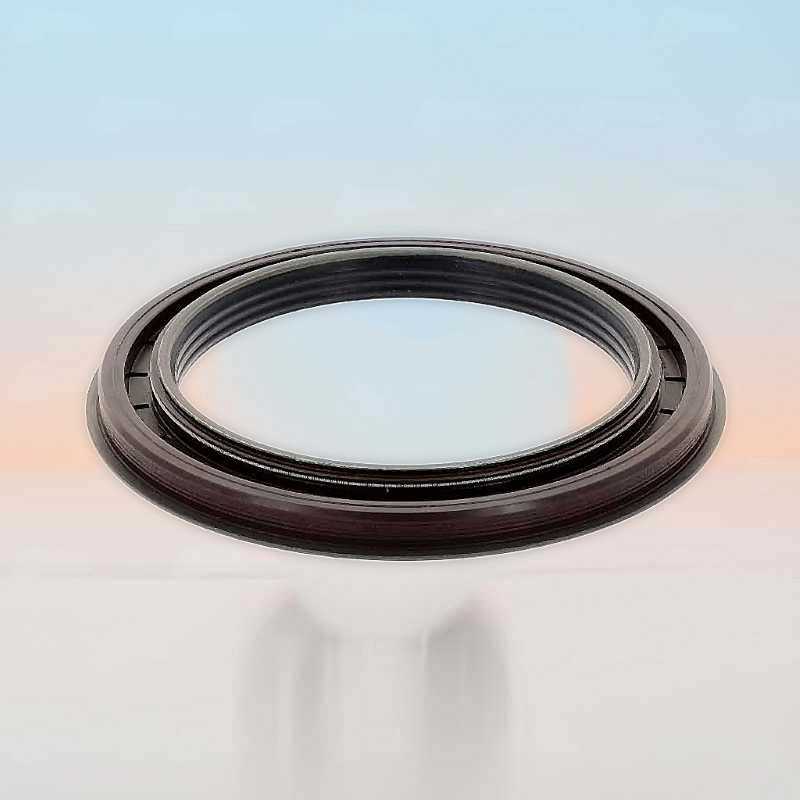

Oil Seal RICH 114,1x152x14 KASSETTE FPM 12017353B RICH
zoom_out_map
Oil Seal RICH 114,1x152x14 KASSETTE FPM 12017353B RICH

Oil Seal RICH 114,1x152x14 KASSETTE FPM

Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
Model: RICH 114,1 x 152/159,3 x 14 FPM KASSETTE
Material: FPM Fluoroelastomer (-20÷200°C)
Brand: RICH
Origin: China
RICH
12017353B

Volume discounts

Quantity Unit price
10 €20.26
20 €19.29
50 €18.33
100 €17.36
€22.38
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 114.1 x 152/159.3 x 14 FPM KASSETTE

OE References:

  • IVECO: 40102320
  • IVECO: 40102321

Technical Specifications:

  • Brand: RICH
  • Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
  • Inner Diameter (d): 114.1 mm
  • Outer Diameter (D): 152 / 159.3 mm
  • Height (h): 14 mm
  • Material: FPM Fluoroelastomer
  • Temperature Range: -20°C to +200°C
  • Country of Origin: China

Performance Characteristics:

  • KASSETTE Internal Wear Surface: The sealing interface operates on an internalized wear track, preventing direct contact with the 114.1 mm axle shaft.
  • Shaft Preservation: The internal sealing surface eliminates the formation of wear grooves on the shaft, removing the need for hardening, metal spraying, or resurfacing of the axle journal.
  • FPM Material Stability: The fluoroelastomer compound maintains sealing integrity within the specified -20°C to +200°C range, suitable for thermally stressed differential housings.
  • Multi-Lip Labyrinth Geometry: The lip arrangement is engineered to reduce ingress of particulate matter and moisture through controlled flow restriction paths.
  • Dual-Diameter Outer Profile: The 152/159.3 mm stepped OD is designed for press-fit installation in compatible Iveco hub housings, ensuring axial positioning without additional retention elements.

Transparency Note: This product is manufactured under the RICH brand. OE references (IVECO 40102320, 40102321) are provided exclusively for identification and compatibility and do not imply association with other manufacturers.

Data sheet

Inner Diameter
114,1
Outer Diameter
152
Width
14
Weight
0,5458
Compatible with Corteco
12017353B
