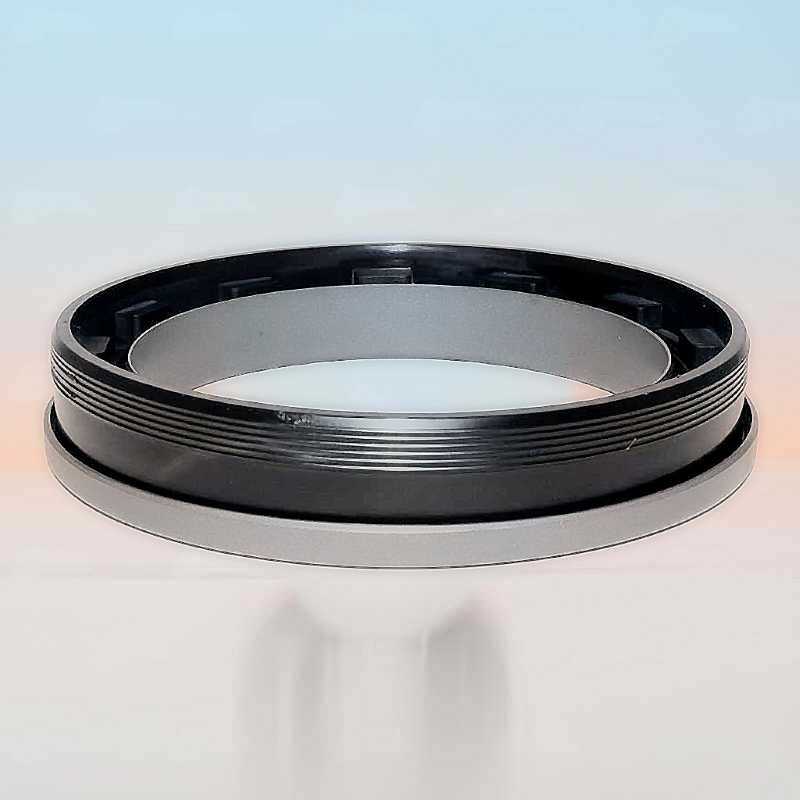

Oil Seal RICH 57x73/76x10/13.8 NBR 57x73/76x10/13.8
zoom_out_map
Oil Seal RICH 57x73/76x10/13.8 NBR 57x73/76x10/13.8

Oil Seal RICH 57x73/76x10/13.8 NBR

Type: Oil Seal / Simmerring
Model: 57x73/76x10/13.8 NBR RICH
Material: NBR Rubber
Feature: With Flange
Brand: RICH
Origin: China
12019185B

Volume discounts

Quantity Unit price
10 €6.26
20 €5.97
50 €5.67
100 €5.37
€6.92
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 57x73/76x10/13.8 NBR

OE Reference:

  • CATERPILLAR: 1197047
  • JOHN DEERE: AL110924
  • ZF: 0734309390
  • DANA: 7500602701

Technical Specifications:

  • Catalog Code: 57x73/76x10/13.8 NBR RICH
  • Brand: RICH
  • Type: Seal Ring / Oil Seal / Simmerring
  • Inner Diameter (d): 57 mm
  • Outer Diameter 1 (D): 73 mm
  • Outer Diameter 2 (Flange): 76 mm
  • Height 1 (h): 10 mm
  • Height 2 (Total): 13.8 mm
  • Material: NBR (Nitrile Butadiene Rubber)
  • Country of Origin: China

Key Performance Advantages:

  • Flanged Positioning Control: The integrated 76 mm flange acts as a precise installation stop, ensuring the seal is seated at the exact depth required for optimal contact with the rotating shaft.
  • High-Grade NBR Durability: Formulated for industrial use, the Nitrile material offers superior wear resistance and remains flexible across a wide range of operational temperatures.
  • Multi-Lip Protection: Features a primary sealing lip for oil retention and an auxiliary dust lip to block the ingress of environmental contaminants such as soil, dust, and moisture.
  • Reinforced Structural Integrity: Built with a metal insert to provide the necessary stiffness for a secure interference fit within the housing, preventing seal rotation or displacement.
  • Direct OE Compatibility: Precision-engineered to match the technical requirements of ZF, Dana, and John Deere drivetrain components, guaranteeing a reliable and leak-free interchange.

Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
57
Outer Diameter
73 / 76
Width
10 / / 13,8
Weight
0,11
Producer Code
12019185B
Compatible with Corteco
12019185B
