Oil Seal RICH 85x110x13 KASSETTE ACM 85x110x13 KASSETTE ACM RICH
zoom_out_map
Oil Seal RICH 85x110x13 KASSETTE ACM 85x110x13 KASSETTE ACM RICH

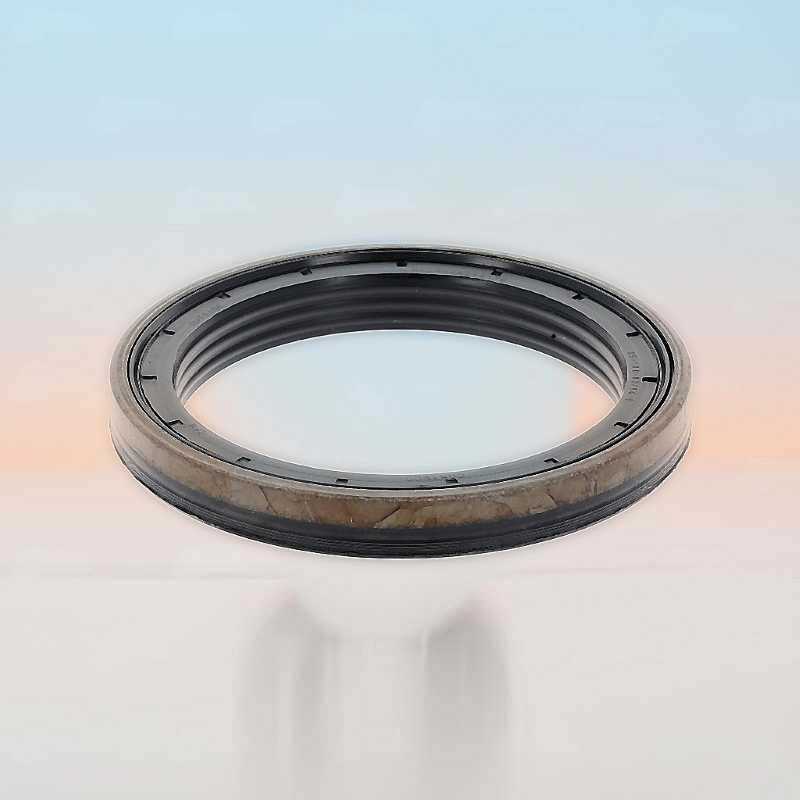

Oil Seal RICH 85x110x13 KASSETTE ACM

Type: RWDR-KASSETTE / Cassette Seal
Model: Oil Seal RICH 85x110x13/14.5 ACM
Material: ACM Polyacrylate
Position: Front Axle / Wheel Hub
Brand: RICH
Origin: China
RICH
12014974B

Volume discounts

Quantity Unit price
10 €17.04
20 €16.22
50 €15.41
100 €14.60
€18.82
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 85x110x13/14.5 ACM

OE Reference:

  • CARRARO: 133431
  • DEUTZ-FAHR: 215291200
  • SAME: 215291200
  • LAMBORGHINI: 215291200
  • HÜRLIMANN: 215291200

Technical Specifications:

  • Catalog Code: 85x110x13/14.5 ACM RICH
  • Brand: RICH
  • Type: RWDR-KASSETTE (Cassette / Box-type Seal)
  • Inner Diameter (d): 85 mm
  • Outer Diameter (D): 110 mm
  • Height 1 (h1): 13 mm
  • Height 2 (Total): 14.5 mm
  • Material: ACM (Polyacrylate)
  • Fitting Position: Front Axle / Wheel Hub
  • Country of Origin: China

Key Performance Advantages:

  • High-Temperature ACM Construction: The Polyacrylate material offers enhanced thermal stability and resistance to modern gear lubricants, ensuring the seal remains flexible and effective in high-friction agricultural hubs.
  • Unitized Cassette Architecture: This seal features an internal wear sleeve that rotates with the shaft, protecting the axle from friction-induced grooving and eliminating the need for expensive shaft resurfacing.
  • Labyrinth Protection System: Engineered with multiple exclusionary lips that create a complex labyrinth path, effectively blocking the ingress of mud, water, and fine field grit.
  • Precision Axle Fit: Specifically tailored for the 85 mm shaft diameter found in SDF and Carraro front axle housings, ensuring a stable interference fit and consistent radial pressure.
  • SDF Group Reliability: Precision-engineered to match the technical standards of OE reference 215291200, guaranteeing a factory-standard fit for Same, Deutz-Fahr, and Lamborghini tractors.

Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
85
Outer Diameter
110
Width
13
Weight
0,15
Compatible with Corteco
12014974B
