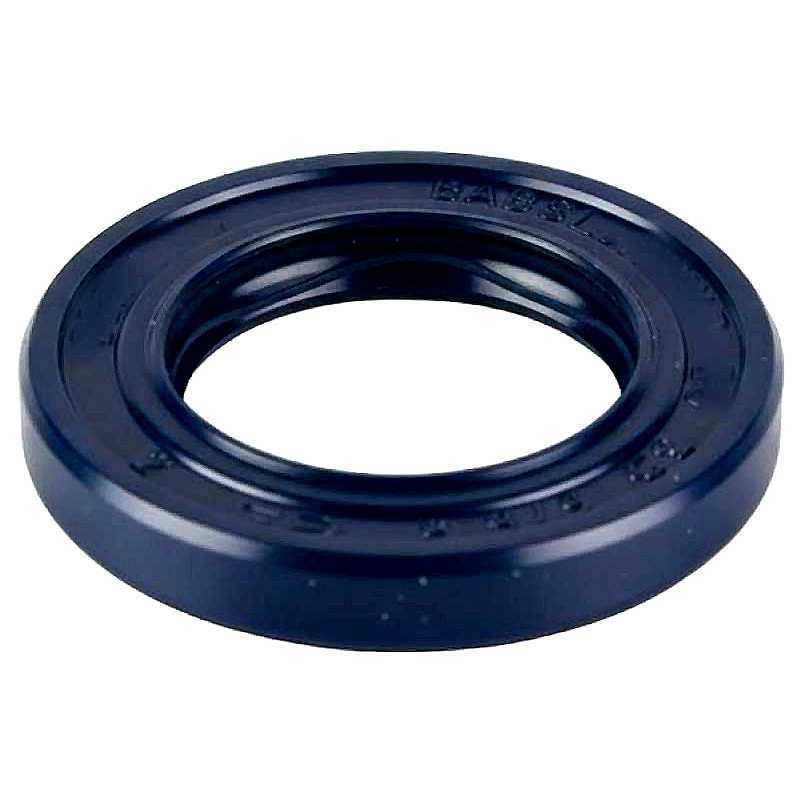

Oil Seal RICH 20x32x5/5,5 NBR 07016442B RICH
zoom_out_map
Oil Seal RICH 20x32x5/5,5 NBR 07016442B RICH

Oil Seal RICH 20x32x5/5,5 NBR

Type: Oil Seal / Shaft Seal / Sealing Ring (Double lip seal)
Model: Oil Seal RICH 20 x 32 x 5/5.5 NBR
Material: NBR nitrile rubber (-30÷100°C)
Brand: RICH
Origin: China
RICH
07016442B

Volume discounts

Quantity Unit price
10 €2.70
20 €2.57
50 €2.44
100 €2.31
€2.98
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 20 x 32 x 5/5.5 NBR

Technical Specifications:

  • Catalog Code: 20 x 32 x 5/5.5 NBR RICH
  • Brand: RICH
  • Type: Oil Seal / Shaft Seal / Sealing Ring (Double lip seal)
  • Inner Diameter (d): 20 mm
  • Outer Diameter (D): 32 mm
  • Height 1 (h1): 5 mm
  • Height 2 (h2): 5.5 mm
  • Material: NBR nitrile rubber (-30÷100°C)
  • Direction of Lead: Two-way (Bi-directional)
  • Working Pressure: 10 bar
  • Feature: Ribbed outer surface for enhanced seat stability
  • Country of Origin: China

Key Performance Advantages:

  • High-Grade NBR Resilience: Specifically formulated with NBR nitrile rubber (-30÷100°C) for excellent resistance to mineral oils, hydraulic fluids, and grease, maintaining elasticity and structural integrity across diverse temperature ranges.
  • Two-Way Rotation Support: The bi-directional lead design allows the seal to maintain an effective oil-backfeed effect regardless of the shaft's rotational direction.
  • Pressure Stability: Engineered to operate effectively under working pressures of up to 10 bar, ensuring a consistent leak-proof barrier in pressurized hydraulic and mechanical systems.
  • Double Lip Protection: Features a primary spring-loaded sealing lip for maximum oil retention and a secondary auxiliary dust lip that acts as a robust shield against external contaminants.
  • Precision Ribbed Housing: The ribbed outer diameter ensures a secure interference fit within the housing, compensating for thermal expansion and preventing the seal from migrating under vibration.

Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
20
Outer Diameter
32
Width
5 / 5,5
Weight
0,007
Compatible with Corteco
07016442B
