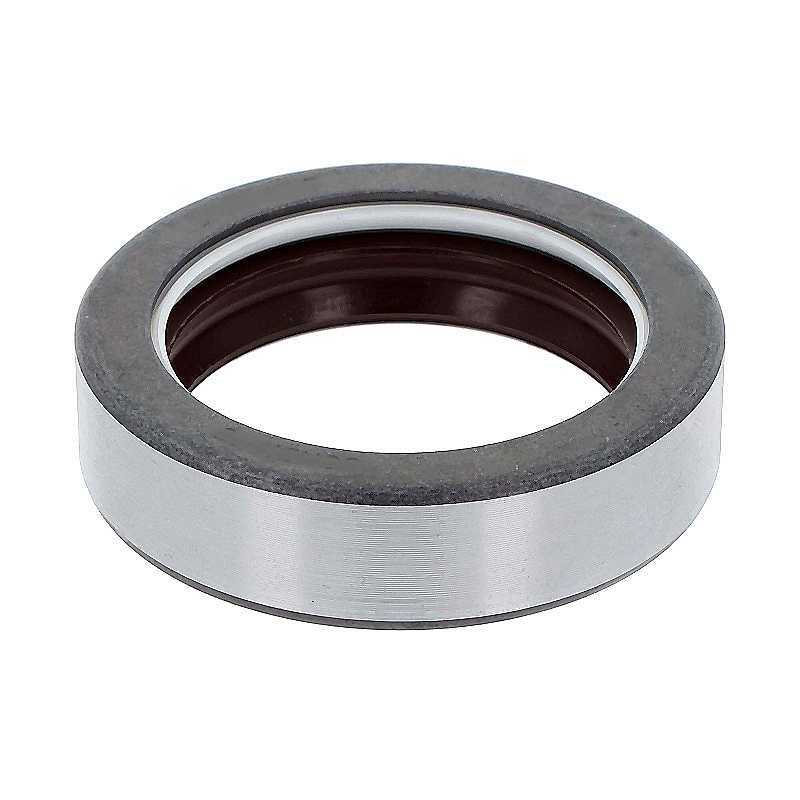

Oil Seal RICH 48x65x16.5 FPM
OE Reference:
- CARRARO: 140224
- NEW HOLLAND: 85821287
- CLAAS: 6000104488
- RENAULT: 6000104488
Technical Specifications:
- Catalog Code: 48x65x16.5 FPM RICH
- Brand: RICH
- Type: RWDR-KOMBI (SF6 Profile)
- Inner Diameter (d): 48 mm
- Outer Diameter (D): 65 mm
- Height (h): 16.5 mm / 17 mm
- Material: FPM (Fluorocarbon Rubber / Viton)
- Fitting Position: Front Axle / Wheel Hub
- Country of Origin: China
Key Performance Advantages:
- Advanced Fluorocarbon Thermal Stability: The FPM construction offers maximum resistance to high operating temperatures and chemically aggressive gear oils, preventing the seal from hardening or cracking during intensive field operations.
- SF6 Kombi Technology: The unitized SF6 design merges a primary sealing lip with a sophisticated physical labyrinth, creating a superior barrier against external mud, road salt, and fine abrasive grit.
- Precision Axle Engineering: Specifically optimized for the 48 mm shaft diameter common in heavy-duty Carraro axle housings, ensuring a stable interference fit and consistent radial pressure under high-torque conditions.
- Reinforced Structural Rigidity: Built with a heavy-duty metal housing to prevent seal displacement or deformation, ensuring a reliable, leak-proof interface even under intense mechanical vibration.
- Multi-Brand Professional Interchange: Developed to match the exact technical standards for major manufacturers including New Holland and Claas, guaranteeing a factory-standard fit for professional maintenance.
Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and references are used for identification and do not imply affiliation with other manufacturers.
