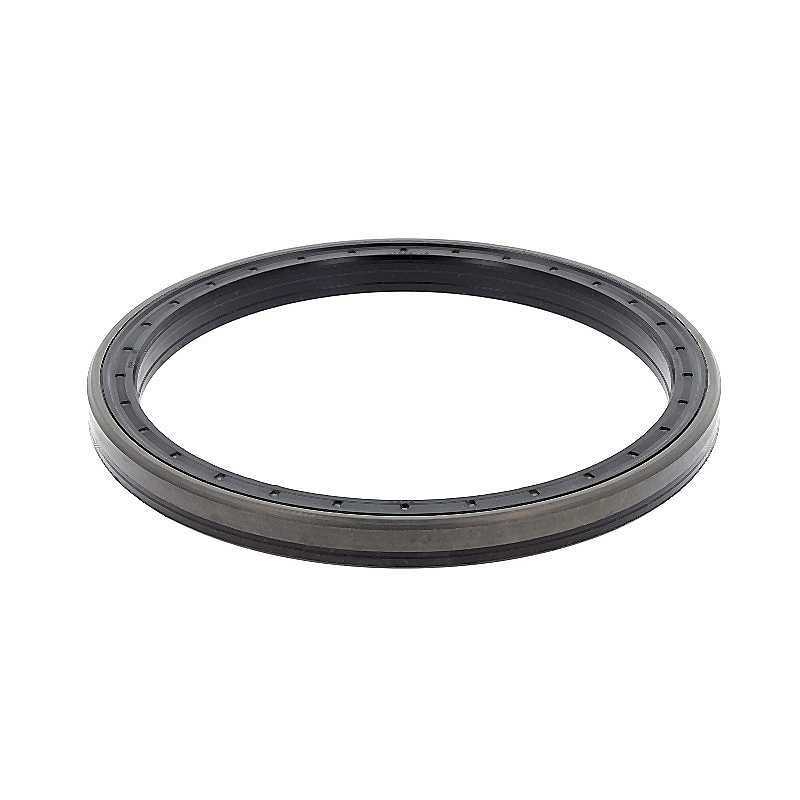

Oil Seal RICH 170x200x15/16 KASSETTE FPM 12019084B RICH
zoom_out_map
Oil Seal RICH 170x200x15/16 KASSETTE FPM 12019084B RICH

Oil Seal RICH 170x200x15/16 KASSETTE FPM

Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
Model: Oil Seal RICH 170 x 200 x 15/16 FPM KASSETTE
Material: FPM Fluoro rubber (-20÷200°C)
Brand: RICH
Origin: China
RICH
12019084B

Volume discounts

Quantity Unit price
10 €31.88
20 €30.36
50 €28.85
100 €27.33
€35.22
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 170 x 200 x 15/16 FPM KASSETTE

OE Reference:

  • DEUTZ-FAHR: 215291100
  • SAME / LAMBORGHINI / HURLIMANN: 215291100
  • GRAZIANO TRASMISSIONI: 71531

Technical Specifications:

  • Catalog Code: 170 x 200 x 15/16 FPM KASSETTE RICH
  • Brand: RICH
  • Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
  • Inner Diameter (d): 170 mm
  • Outer Diameter (D): 200 mm
  • Height (h): 15 / 16 mm
  • Material: FPM Fluoro rubber (-20÷200°C)
  • Country of Origin: China

Key Performance Advantages:

  • KASSETTE Integrated Design: Features an internal running surface and multi-lip structure that eliminates the need for shaft hardening or specialized machining, protecting the large-diameter axle from wear and grooving.
  • Superior Thermal Resistance: The FPM Fluoro rubber (-20÷200°C) compound maintains structural integrity under intense heat generated by continuous heavy-duty operation in agricultural and industrial environments.
  • Maximum Contaminant Defense: Specifically engineered to block the ingress of harsh external elements like soil, water, and debris, significantly extending the service life of internal bearings in Graziano transmission systems.
  • Reduced Maintenance Intervals: The self-contained unit reduces the risk of installation errors and protects the shaft from environmental damage, leading to lower operating costs for large machinery fleets.
  • SDF Group Precision Compliance: Precision-manufactured to match the exact technical standards of Deutz-Fahr and Lamborghini reference 215291100, guaranteeing a reliable factory-standard replacement.

Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
170
Outer Diameter
200
Width
15//16
Weight
0,49
Compatible with Corteco
12019084B
