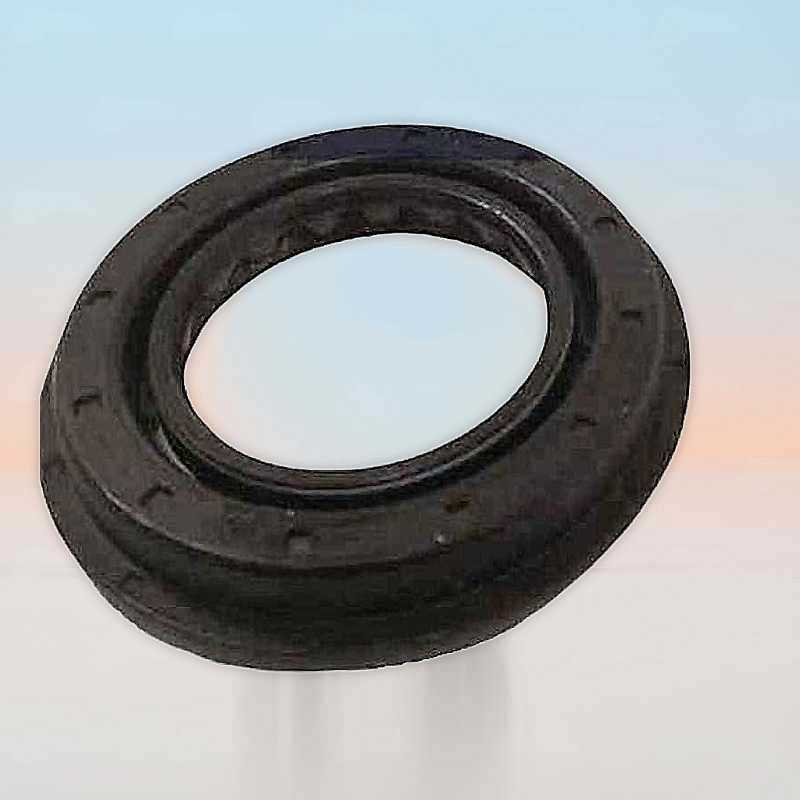

Oil Seal RICH 40x64/71x7.5/12.5 RWDR-KOMBI ACM 40x64/71x7.5/12.5 RICH

Oil Seal RICH 40x64/71x7.5/12.5 RWDR-KOMBI ACM

Type: Kombi Oil Seal / RWDR-KOMBI
Model: 40x64/71x7.5/12.5 ACM RICH
Material: ACM Polyacrylate
Fit: Land Rover TRX000010L
Brand: RICH
Origin: China
RICH
49358740

Volume discounts

Quantity Unit price
10 €5.30
20 €5.04
50 €4.79
100 €4.54
€5.85
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 40x64/71x7.5/12.5 ACM

OE Reference:

  • LAND ROVER: TRX000010L

Technical Specifications:

  • Catalog Code: 40x64/71x7.5/12.5 ACM RICH
  • Brand: RICH
  • Type: RWDR-KOMBI (Kombi Radial Oil Seal)
  • Inner Diameter (d): 40 mm
  • Outer Diameter 1 (D): 64 mm
  • Outer Diameter 2 (Flange): 71 mm
  • Height 1 (h): 7.5 mm
  • Height 2 (Total): 12.5 mm
  • Material: ACM (Polyacrylate Rubber)
  • Fitting Position: Outlet
  • Country of Origin: China

Key Performance Advantages:

  • Kombi Multi-Seal Technology: The RICH Kombi design combines a standard oil seal with an additional dirt deflector in a single housing, offering maximum protection for bearings in heavily soiled environments.
  • High-Temperature ACM Material: Polyacrylate rubber is chosen for its excellent resistance to extreme pressure (EP) lubricants and its ability to maintain sealing integrity at higher operating temperatures compared to standard NBR.
  • Integrated Flange Design: The 71 mm secondary outer diameter provides a precise mounting stop, ensuring the seal is perfectly aligned and preventing over-insertion during the installation process.
  • Specialized for Land Rover: Specifically engineered to meet the requirements of the TRX000010L reference, ensuring a high-performance fit for transfer cases and transmission outlets.
  • Contaminant Exclusion: The complex lip geometry is optimized to pump oil back toward the reservoir while simultaneously flicking away external mud, water, and road grit.

Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
40
Outer Diameter
64
Width
7,5
Weight
0,0566
Producer Code
49358740
Compatible with Corteco
49358740
