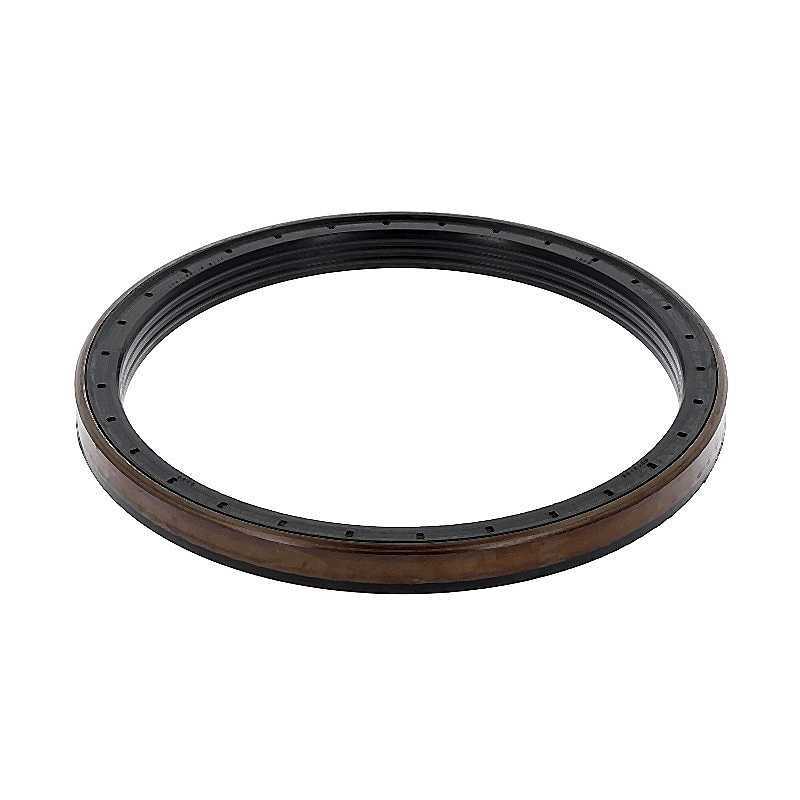

Oil Seal RICH 173x200x15,5 ACM CASSETTE 173x200x15,5 ACM RICH
zoom_out_map
Oil Seal RICH 173x200x15,5 ACM CASSETTE 173x200x15,5 ACM RICH

Oil Seal RICH 173x200x15,5 ACM CASSETTE

Type: Oil Seal / Simmerring
Model: Oil Seal RICH 173x200x16/17 ACM
Material: ACM Polyacrylate
Position: Front Axle
Brand: RICH
Origin: China
RICH
12018729B

Volume discounts

Quantity Unit price
10 €26.96
20 €25.67
50 €24.39
100 €23.11
€29.78
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 173x200x16/17 ACM

OE Reference:

  • DEUTZ-FAHR: 21529124030
  • SAME: 21529124030
  • LAMBORGHINI: 21529124030
  • HÜRLIMANN: 21529124030

Technical Specifications:

  • Catalog Code: 173x200x16/17 ACM RICH
  • Brand: RICH
  • Type: Seal Ring / Oil Seal / Simmerring
  • Inner Diameter (d): 173 mm
  • Outer Diameter (D): 200 mm
  • Height 1 (h1): 16 mm
  • Height 2 (Total): 17 mm
  • Material: ACM (Polyacrylate)
  • Fitting Position: Front Axle
  • Country of Origin: China

Key Performance Advantages:

  • High-Temperature ACM Performance: The Polyacrylate construction offers enhanced thermal stability compared to standard NBR, making it ideal for the high-friction environments of heavy-duty tractor front axles.
  • Large Diameter Precision: Engineered for 173 mm shafts, providing consistent radial tension across the entire circumference to ensure a reliable seal on large rotating hub assemblies.
  • Front Axle Hub Protection: Designed for the demanding front axle position, acting as a formidable barrier against external mud, water, and grit that can cause premature bearing wear.
  • Enhanced Structural Integrity: Built with a reinforced metal insert to prevent seal deformation or displacement during the high-torque operations typical of agricultural work.
  • SDF Group Compatibility: Precision-engineered as a direct replacement for OE reference 21529124030, ensuring a factory-standard fit for Deutz-Fahr, Same, and Lamborghini tractors.

Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
173
Outer Diameter
200
Width
15,5
Weight
0,393
Compatible with Corteco
12018729B
