Oil Seal RICH 136x165,5x16 COMBI ACM 136x165,5x16 COMBI ACM RICH
zoom_out_map
Oil Seal RICH 136x165,5x16 COMBI ACM 136x165,5x16 COMBI ACM RICH

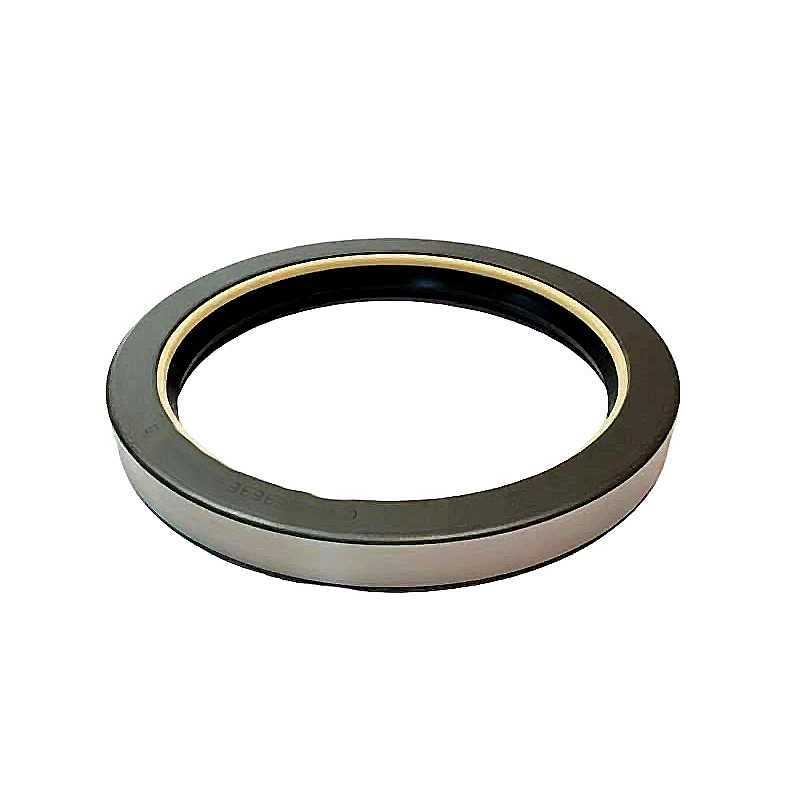

Oil Seal RICH 136x165,5x16 COMBI ACM

Type: Combi Oil Seal
Model: Oil Seal RICH 136x165.5x16 ACM Combi
Material: ACM Rubber
Brand: RICH
Origin: China
RICH
12013067B

Volume discounts

Quantity Unit price
10 €16.53
20 €15.74
50 €14.95
100 €14.17
€18.26
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 136x165.5x16 ACM Combi

OE Reference:

  • FIATALLIS: 79070588
  • GRAZIANO TRASMISSIONI: 70527
  • JCB: 90420178
  • NEW HOLLAND: 79070588

Technical Specifications:

  • Catalog Code: 136x165.5x16 ACM RICH
  • Brand: RICH
  • Type: Combi Oil Seal
  • Inner Diameter (d): 136 mm
  • Outer Diameter (D): 165.5 mm
  • Height (h): 16 mm
  • Material: ACM (Polyacrylate Rubber)
  • Country of Origin: China

Key Performance Advantages:

  • High-Heat ACM Resilience: The Polyacrylate (ACM) compound is engineered to maintain structural integrity and lip flexibility at elevated temperatures, making it ideal for high-stress transmission and axle environments.
  • Integrated Combi Labyrinth: The unitized multi-lip design creates a sophisticated barrier that protects the primary sealing surface from external abrasive particles, significantly extending the life of the assembly.
  • Chemical Additive Resistance: Optimized for compatibility with specialized gear oils and synthetic lubricants, preventing premature hardening or degradation of the sealing lips.
  • Structural Rigidity: Specifically optimized for the 136 mm shaft diameter, the reinforced metal housing ensures a stable interference fit and consistent radial pressure under intense mechanical loads.
  • Multi-OEM Precision Fit: Precision-manufactured to match the exact technical requirements of Fiatallis, JCB, and Graziano Trasmissioni, guaranteeing a reliable factory-standard replacement.

Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
136
Outer Diameter
165,5
Width
16
Weight
0,304
Compatible with Corteco
12013067B
